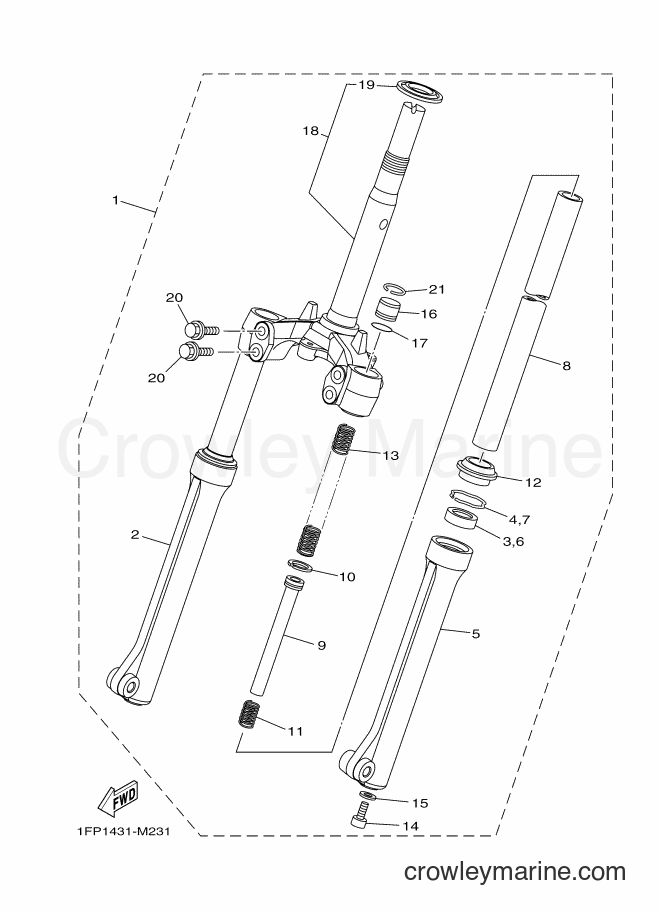

2016 Scooter T115FLSEC - T115FLSEC (1FPD) [010] FRONT FORK FOR DRUM BRAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSEC (1FPD) [010] - FRONT FORK FOR DRUM BRAKE
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
3
Required: 1
. OIL SEAL
Price unavailable
Snap Ring
4
Yamaha Motors
Snap Ring4RT-F3153-00-00
Required: 1
. RING, SNAP
Cross Ship
Leaves in 2-5 days
$4.25
$3.61
You save $0.64
More details
5
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
6
Required: 1
. OIL SEAL
Price unavailable
Snap Ring
7
Yamaha Motors
Snap Ring4RT-F3153-00-00
Required: 1
. RING, SNAP
Cross Ship
Leaves in 2-5 days
$4.25
$3.61
You save $0.64
More details
8
Required: 2
. INNER TUBE COMP.1
Price unavailable
9
Required: 2
. PISTON, FRONT FORK
Price unavailable
PISTON RING
10
Yamaha Motors
PISTON RING1FP-F3157-00-00
Required: 2
. RING, PISTON
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Rebound Spring
11
Yamaha Motors
Rebound Spring49P-F3151-00-00
Required: 2
. SPRING, REBOUND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 2
. SEAL, DUST
Price unavailable
13
Required: 2
. SPRING, FRONT FORK
Price unavailable
14
Required: 2
. BOLT 2
Price unavailable
15
Required: 2
. GASKET
Price unavailable
16
Required: 2
. BOLT, CAP
Price unavailable
17
Required: 2
. O-RING
Price unavailable
18
Required: 1
. UNDER BRACKET COMP.
Price unavailable
BALL RACE
19
Yamaha Motors
BALL RACE4FP-F3411-10-00
Required: 1
. . RACE, BALL 1
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
20
Required: 4
. BOLT 1
Price unavailable
21
Required: 2
. CIRCLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
