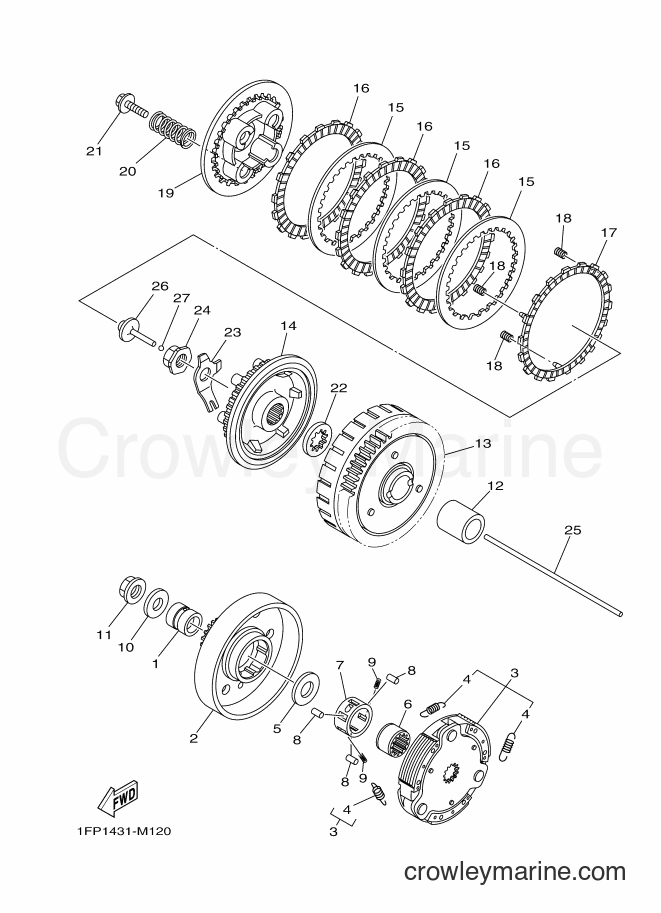

2016 Scooter T115FLS - T115FLS (1FPB) [010] CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLS (1FPB) [010] - CLUTCH
Change View:
1
Required: 1
COLLAR
Price unavailable
2
Required: 1
CLUTCH HOUSING COMP.
Price unavailable
3
Required: 1
CLUTCH CARRIER ASSY
Price unavailable
4
Required: 3
. SPRING, CLUTCH WEIGHT 1
Price unavailable
Plain Washer
5
Yamaha Motors
Plain Washer90201-167P7-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
6
Required: 1
BOSS, CLUTCH HOUSING
Price unavailable
CAGE (5D93,31B3)
7
Yamaha Motors
CAGE (5D93,31B3)5D9-E6586-00-00
Required: 1
CAGE
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
Dowel Pin
8
Yamaha Motors
Dowel Pin93606-10800-00
Required: 3
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
9
Required: 2
SPRING, COMPRESSION
Price unavailable
Plain Washer
10
Yamaha Motors
Plain Washer90201-12019-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
11
Required: 1
NUT
Price unavailable
12
Required: 1
COLLAR
Price unavailable
13
Required: 1
PRIMARY DRIVEN GEAR COMP.
Price unavailable
14
Required: 1
BOSS, CLUTCH
Price unavailable
15
Required: 3
PLATE, CLUTCH 1
Price unavailable
16
Required: 3
PLATE, FRICTION
Price unavailable
17
Required: 1
PLATE, FRICTION 1
Price unavailable
18
Required: 3
SPRING.,CUSHION
Price unavailable
19
Required: 1
PLATE, PRESSURE 1
Price unavailable
20
Required: 4
SPRING, CLUTCH 1
Price unavailable
21
Required: 4
BOLT
Price unavailable
22
Required: 1
WASHER
Price unavailable
23
Required: 1
WASHER, LOCK
Price unavailable
Nut
24
Yamaha Motors
Nut90179-14001-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
25
Required: 1
ROD, PUSH 2
Price unavailable
26
Required: 1
ROD, PUSH 1
Price unavailable
27
Required: 1
BALL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
