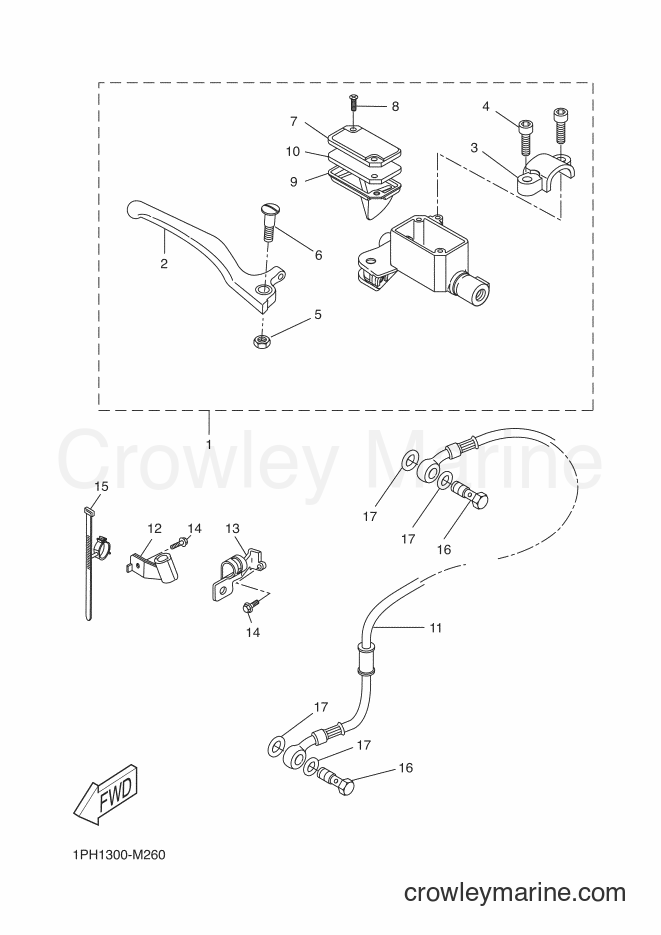

2016 Scooter NS50 - NS50 (1PH7) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors NS50 (1PH7) [010] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
. LEVER 1
Price unavailable
3
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
Button Bolt
4
Yamaha Motors
Button Bolt92017-06025-00
Required: 2
. BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
95604-06200-00
5
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
. NUT, SELF U-FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
6
Required: 1
. BOLT, LEVER
Price unavailable
7
Required: 1
. CAP, RESERVOIR
Price unavailable
Flat Screw
8
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
9
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
10
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
11
Required: 1
HOSE, BRAKE 1
Price unavailable
12
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
13
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
Flange Bolt
14
Yamaha Motors
Flange Bolt95024-06012-00
Required: 2
BOLT, FLG.(SMALL HEAD)
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
15
Required: 1
CLAMP
Price unavailable
16
Required: 2
BOLT, UNION
Price unavailable
Plain Washer
17
Yamaha Motors
Plain Washer90201-10X03-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
