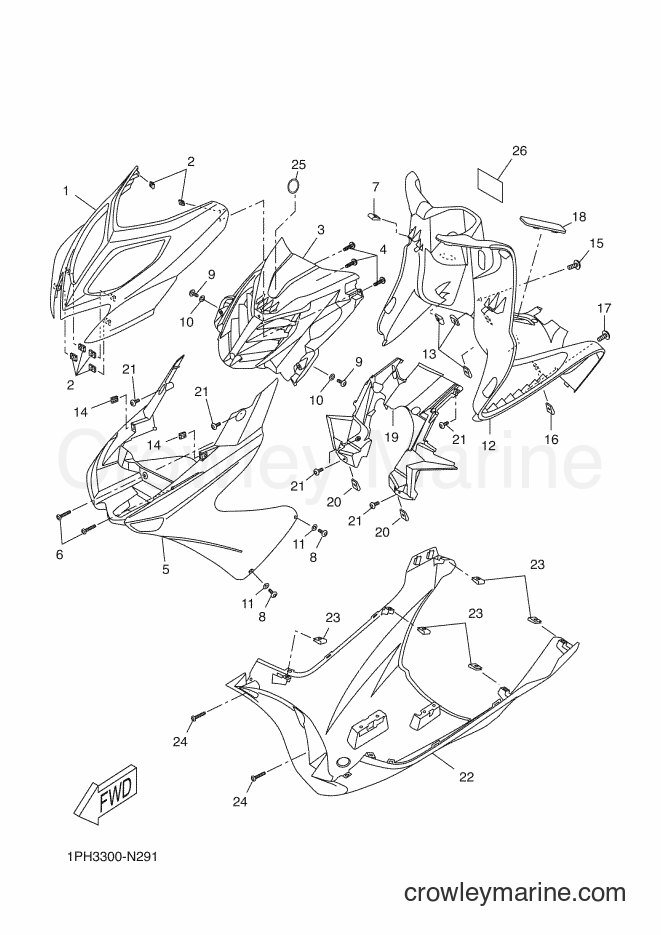

Yamaha Motors NS50 (1PH7) [090] - LEG SHIELD
Change View:
1
Required: 1
BODY, FRONT UPPER 1
Price unavailable
3
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
4
Required: 8
SCREW, TAPPING
Price unavailable
5
Required: 1
BODY, FRONT UNDER 1
Price unavailable
6
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
Spring Nut
7
Yamaha Motors
Spring Nut90183-06X00-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
BOLT
8
Yamaha Motors
BOLT90111-05018-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BLT,BUTTON HD
9
Yamaha Motors
BLT,BUTTON HD92017-06016-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Washer
10
Yamaha Motors
Washer92907-06200-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 4
WASHER, PLATE
Price unavailable
12
Required: 1
LEG SHIELD 1
Price unavailable
NUT SPRING
13
Yamaha Motors
NUT SPRING90183-05X04-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Spring Nut
14
Yamaha Motors
Spring Nut90183-060A6-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
15
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
Spring Nut
16
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
17
Required: 7
SCREW, TAPPING
Price unavailable
Cap
18
Yamaha Motors
Cap3WV-F8349-10-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
19
Required: 1
PANEL, INNER 1
Price unavailable
21
Required: 6
SCREW, TAPPING
Price unavailable
22
Required: 1
COVER, UNDER
Price unavailable
NUT SPRING
23
Yamaha Motors
NUT SPRING90183-05X04-00
Required: 6
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
24
Required: 4
SCREW, TAPPING
Price unavailable
25
Required: 1
TUNING FORK MARK
Price unavailable
26
Required: 1
LABEL, WARNING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
