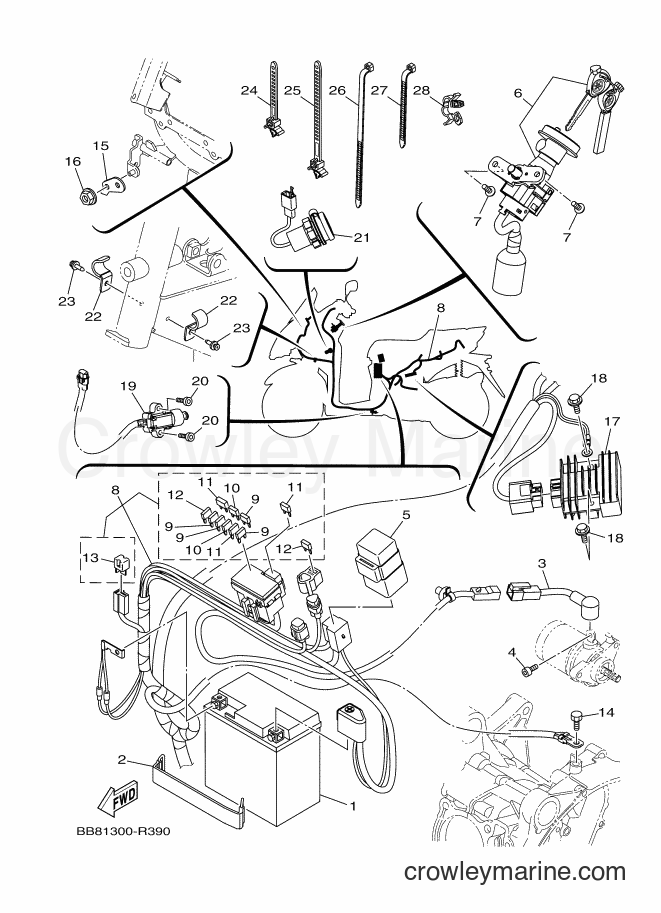

2016 Scooter MWS150-A - MWS150-A (BB81) [060] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MWS150-A (BB81) [060] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (YUASA YTZ7V)
Price unavailable
2
Required: 1
BAND, BATTERY
Price unavailable
3
Required: 1
WIRE, LEAD
Price unavailable
Hexagon Socket Bolt
4
Yamaha Motors
Hexagon Socket Bolt91312-05008-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
STARTER RELAY ASSY
Price unavailable
6
Required: 1
MAIN SWITCH COMP.
Price unavailable
7
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
8
Required: 1
WIRE HARNESS ASSY
Price unavailable
9
Required: 4
. FUSE (7.5A)
Price unavailable
10
Required: 2
. FUSE (15A)
Price unavailable
11
Required: 3
. FUSE (30A)
Price unavailable
12
Required: 2
. FUSE (2A)
Price unavailable
Diode Assembly
13
Yamaha Motors
Diode Assembly3WP-81980-00-00
Required: 1
. DIODE ASSY
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
97013-06012-00
14
Yamaha Motors
97013-06012-0097003-06012-00
Required: 1
BOLT
Supersedes: 97002-06012-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
15
Required: 1
HOLDER
Price unavailable
Rectifier and Regulator
17
Yamaha Motors
Rectifier and Regulator2GS-H1960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$136.99
$116.44
You save $20.55
More details
18
Required: 2
BOLT, FLANGE
Price unavailable
19
Required: 1
SWITCH, SIDE STAND
Price unavailable
Socket Bolt
20
Yamaha Motors
Socket Bolt91317-05016-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05011-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
TERMINAL COMP
21
Yamaha Motors
TERMINAL COMPBB8-H254B-00-00
Required: 1
TERMINAL COMP.
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
22
Required: 2
CLAMP
Price unavailable
24
Required: 4
CLAMP
Price unavailable
25
Required: 1
CLAMP
Price unavailable
26
Required: 1
CLAMP
Price unavailable
Clamp
27
Yamaha Motors
Clamp90464-15195-00
Required: 6
CLAMP
Supersedes: 90464-13073-00
Cross Ship
Leaves in 2-5 days
$4.41
$3.75
You save $0.66
More details
Clamp
28
Yamaha Motors
Clamp90464-07805-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
