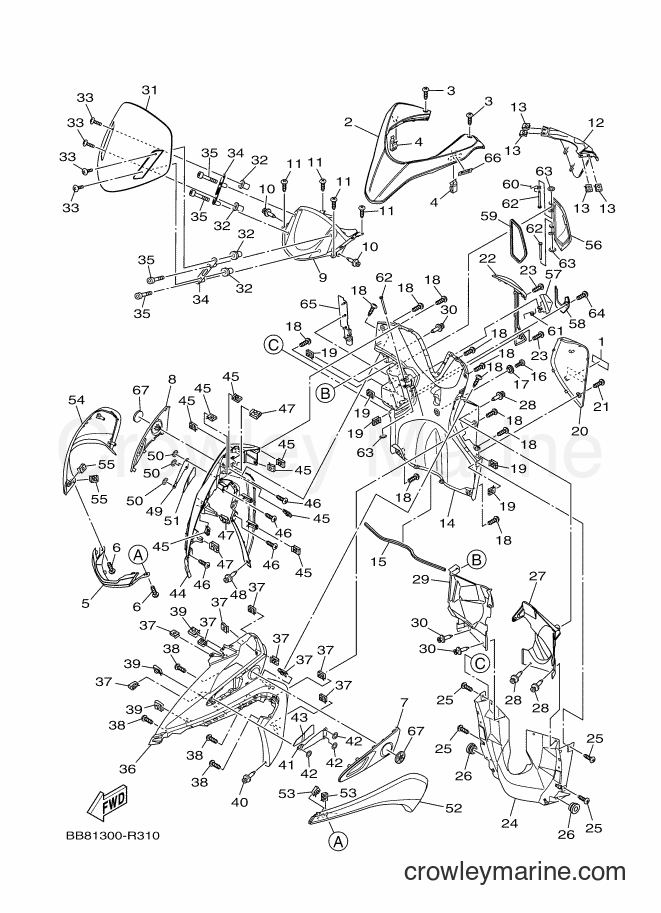

2016 Scooter MWS150-A - MWS150-A (BB81) [010] LEG SHIELD diagram
![Yamaha Motors MWS150-A (BB81) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/XY5RtH11.png)
1
Required: 1
LABEL, WARNING
Price unavailable
2
Required: 1
PANEL, FRONT
Price unavailable
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
4
Required: 2
HOOK
Price unavailable
5
Required: 1
PANEL, FRONT 2
Price unavailable
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
7
Required: 1
PANEL 1
Price unavailable
8
Required: 1
PANEL 2
Price unavailable
9
Required: 1
VISOR
Price unavailable
In stock
Only 4 remaining
$1.44
You save $0.26
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
LEG SHIELD 2
Price unavailable
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
14
Required: 1
LEG SHIELD 1
Price unavailable
15
Required: 1
DAMPER, PLATE
Price unavailable
$8.92
You save $1.57
17
Required: 1
COLLAR
Price unavailable
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 11
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
19
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
20
Required: 1
COVER 1
Price unavailable
21
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
22
Required: 1
COVER 2
Price unavailable
23
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
24
Required: 1
PANEL, INNER 1
Price unavailable
25
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
26
Required: 2
GROMMET
Price unavailable
27
Required: 1
PANEL, INNER 2
Price unavailable
In stock
Only 4 remaining
$1.44
You save $0.26
29
Required: 1
PANEL, INNER 3
Price unavailable
In stock
Only 4 remaining
$1.44
You save $0.26
31
Required: 1
WINDSHIELD
Price unavailable
32
Required: 4
NUT
Price unavailable
33
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 4
SCREW, ROUND HEAD
$2.85
You save $0.50
34
Required: 2
STAY 2
Price unavailable
35
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06138-00
Required: 4
BOLT,HEX.SOCKET HEAD
Supersedes: 91317-06030-00
In stock
Only 2 remaining
$5.52
You save $0.97
36
Required: 1
BODY, COWLING
Price unavailable
37
Yamaha Motors
Spring Nut90183-05042-00
Required: 9
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
38
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
39
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 3
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
In stock
Only 4 remaining
$1.44
You save $0.26
41
Required: 1
GRILL, AIR OUTLET 1
Price unavailable
42
Yamaha Motors
Spring Nut90183-06008-00
Required: 3
NUT, SPRING
Supersedes: 90183-06815-00
$8.07
You save $1.42
43
Required: 1
DAMPER, PLATE 1
Price unavailable
44
Required: 1
BODY, COWLING 2
Price unavailable
45
Yamaha Motors
Spring Nut90183-05042-00
Required: 8
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
46
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
47
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 3
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
In stock
Only 4 remaining
$1.44
You save $0.26
49
Required: 1
GRILL, AIR OUTLET 2
Price unavailable
50
Yamaha Motors
Spring Nut90183-06008-00
Required: 3
NUT, SPRING
Supersedes: 90183-06815-00
$8.07
You save $1.42
51
Required: 1
DAMPER, PLATE 2
Price unavailable
52
Required: 1
MOLE 1
Price unavailable
53
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
54
Required: 1
MOLE 2
Price unavailable
55
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
56
Required: 1
LID
Price unavailable
57
Required: 1
KNOB, 1
Price unavailable
58
Required: 1
PLATE
Price unavailable
59
Required: 1
DAMPER, PLATE
Price unavailable
60
Required: 1
SPRING
Price unavailable
61
Required: 1
SPRING 2
Price unavailable
62
Required: 3
PIN
Price unavailable
$0.81
You save $0.14
64
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
65
Required: 1
MOLD, LEG SHIELD
Price unavailable
66
Required: 1
EMBLEM 3D
Price unavailable
67
Required: 2
EMBLEM, 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
