2016 Scooter MW125A - MW125A (2CMS) [020] WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

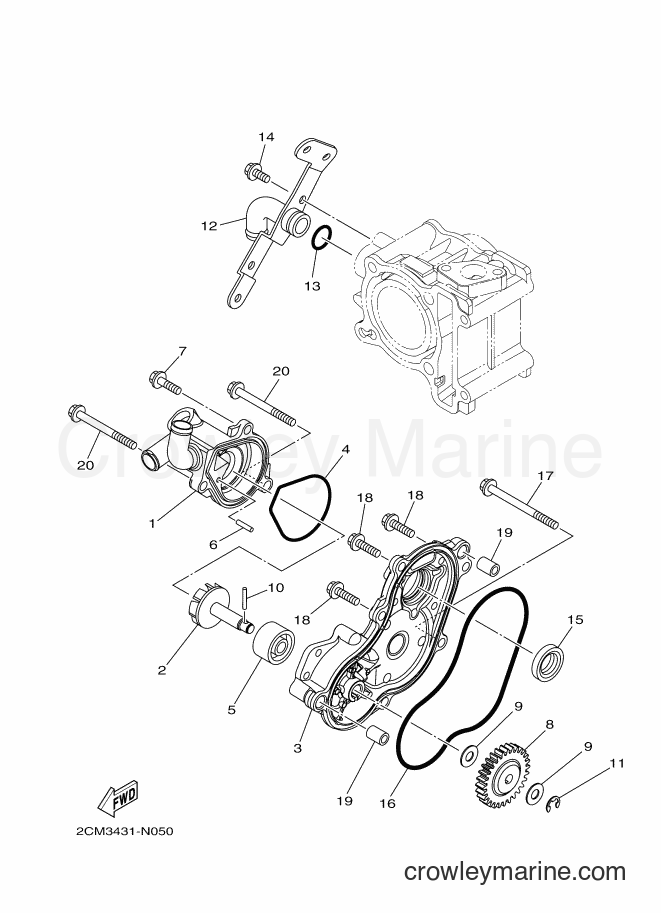

Yamaha Motors MW125A (2CMS) [020] - WATER PUMP
Change View:
1
Required: 1
COVER, HOUSING
Price unavailable
2
Required: 1
IMPELLER SHAFT ASSY
Price unavailable
3
Required: 1
COVER, CAP
Price unavailable
4
Required: 1
O-RING
Price unavailable
Shift Bracket Seal
5
Yamaha Motors
Shift Bracket Seal33S-E2223-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$74.99
$63.74
You save $11.25
More details
6
Required: 1
PIN, DOWEL
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt90105-06894-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.45
$1.23
You save $0.22
More details
8
Required: 1
GEAR, IMPELLER SHAFT
Price unavailable
WASHER
9
Yamaha Motors
WASHER33S-E2456-00-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
10
Required: 1
PIN, DOWEL
Price unavailable
99080-07600-00
11
Yamaha Motors
99080-07600-0099002-07600-00
Required: 1
CIRCLIP(E)
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
12
Required: 1
JOINT
Price unavailable
13
Required: 1
O-RING
Price unavailable
Flange Bolt
14
Yamaha Motors
Flange Bolt95022-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
15
Required: 1
OIL SEAL
Price unavailable
16
Required: 1
O-RING
Price unavailable
Flange Bolt
17
Yamaha Motors
Flange Bolt95022-06070-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
Flange Bolt
18
Yamaha Motors
Flange Bolt95022-06020-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
