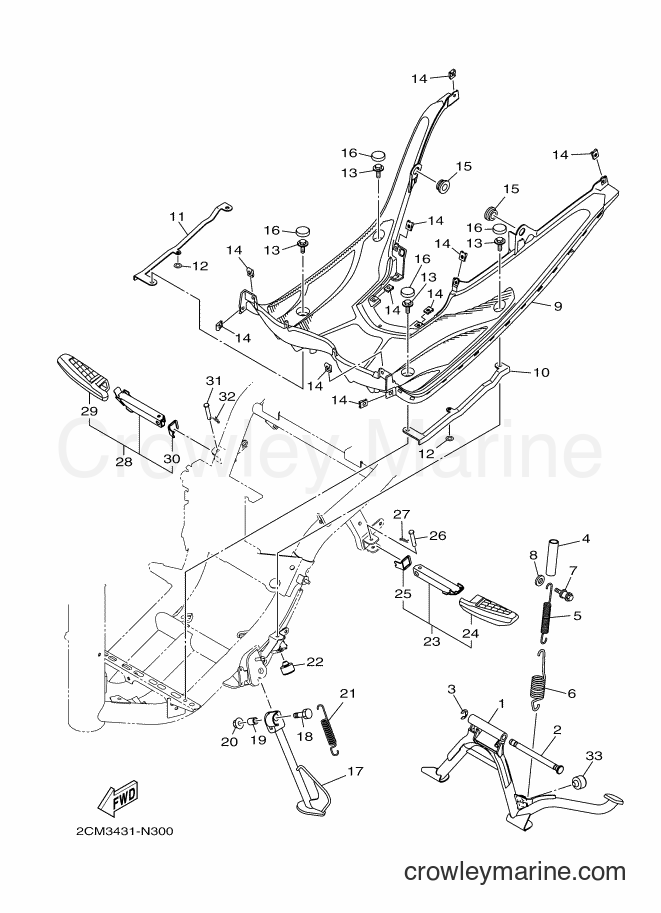

2016 Scooter MW125A - MW125A (2CMS) [020] STAND & FOOTREST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MW125A (2CMS) [020] - STAND & FOOTREST
Change View:
1
Required: 1
STAND, MAIN
Price unavailable
2
Required: 1
SHAFT, MAIN STAND
Price unavailable
3
Required: 1
CIRCLIP
Price unavailable
Hose
4
Yamaha Motors
Hose90445-19003-00
Required: 1
HOSE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
5
Required: 1
SPRING, TENSION
Price unavailable
6
Required: 1
SPRING, TENSION
Price unavailable
7
Required: 1
HOOK
Price unavailable
Plain Washer
8
Yamaha Motors
Plain Washer90201-06107-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details
9
Required: 1
BOARD, FOOTREST
Price unavailable
10
Required: 1
REINFORCEMENT 1
Price unavailable
11
Required: 1
RENFORCEMENT 2
Price unavailable
Spring Nut
12
Yamaha Motors
Spring Nut90183-06008-00
Required: 2
NUT, SPRING
Supersedes: 90183-06815-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 4
BOLT, WITH WASHER
Price unavailable
Grommet
15
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
16
Required: 4
CAP 1
Price unavailable
17
Required: 1
STAND, SIDE
Price unavailable
18
Required: 1
BOLT
Price unavailable
19
Required: 1
COLLAR
Price unavailable
Self-locking Nut
20
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Tension Spring
21
Yamaha Motors
Tension Spring90506-18008-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
22
Required: 1
STOPPER
Price unavailable
23
Required: 1
FOOTREST, REAR 1
Price unavailable
24
Required: 1
. COVER, REAR FOOTREST
Price unavailable
25
Required: 1
. PLATE 1
Price unavailable
26
Required: 1
PIN, CLEVIS
Price unavailable
90468-10050-00
27
Yamaha Motors
90468-10050-00437-83525-00-00
Required: 1
CLIP
Supersedes: 90468-12007-00
Cross Ship
Leaves in 2-5 days
$2.05
$1.74
You save $0.31
More details
28
Required: 1
FOOTREST, REAR 2
Price unavailable
29
Required: 1
. COVER, REAR FOOTREST
Price unavailable
30
Required: 1
. PLATE 1
Price unavailable
31
Required: 1
PIN, CLEVIS
Price unavailable
90468-10050-00
32
Yamaha Motors
90468-10050-00437-83525-00-00
Required: 1
CLIP
Supersedes: 90468-12007-00
Cross Ship
Leaves in 2-5 days
$2.05
$1.74
You save $0.31
More details
33
Required: 1
STOPPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
