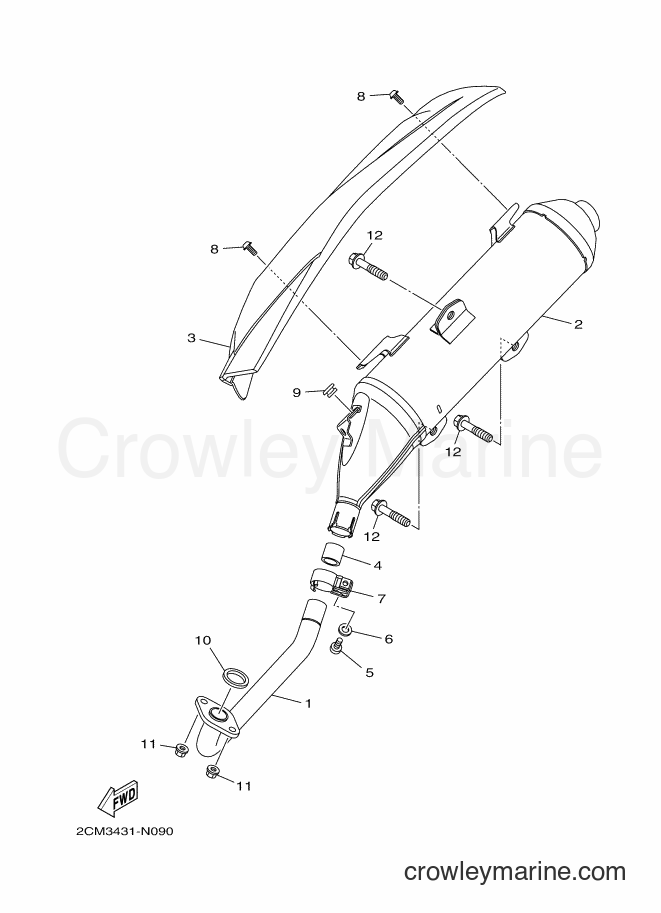

2016 Scooter MW125A - MW125A (2CMS) [020] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MW125A (2CMS) [020] - EXHAUST
Change View:
1
Required: 1
PIPE, EXHAUST 1
Price unavailable
2
Required: 1
MUFFLER 1
Price unavailable
3
Required: 1
PROTECTOR ASSY
Price unavailable
4
Required: 1
GASKET, MUFFLER
Price unavailable
BOLT
5
Yamaha Motors
BOLT91317-08035-00
Required: 1
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plain Washer
6
Yamaha Motors
Plain Washer90201-086P8-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
7
Required: 1
BAND, MUFFLER
Price unavailable
BOLT
8
Yamaha Motors
BOLT90111-06015-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Supersedes: 90111-06807-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10017-00
Required: 1
GROMMET
Supersedes: 90480-10332-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
FLANGE BOLT (8AB)
12
Yamaha Motors
FLANGE BOLT (8AB)95817-10050-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
