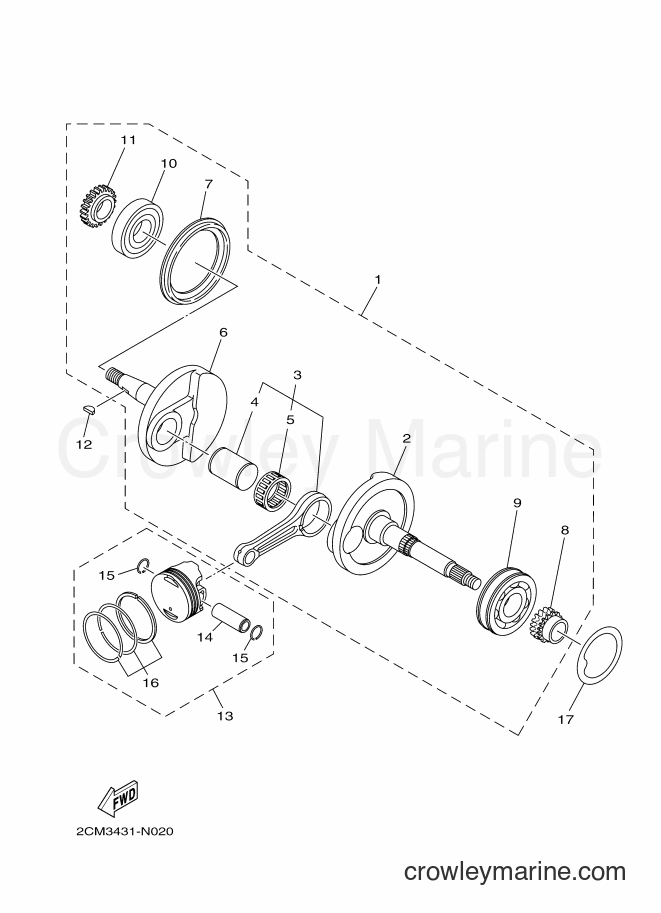

2016 Scooter MW125A - MW125A (2CMS) [020] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MW125A (2CMS) [020] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
. CRANK 1
Price unavailable
3
Required: 1
. CONNECTING ROD ASSY
Price unavailable
4
Required: 1
. . PIN, CRANK 1
Price unavailable
5
Required: 1
. . BEARING
Price unavailable
6
Required: 1
. CRANK 2
Price unavailable
7
Required: 1
. COVER, ROTOR FILTER
Price unavailable
8
Required: 1
. SPROCKET, CAM CHAIN
Price unavailable
9
Required: 1
. BEARING
Price unavailable
10
Required: 1
. BEARING
Price unavailable
11
Required: 1
. GEAR, PUMP DRIVE
Price unavailable
Woodruff Key
12
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
13
Required: 1
PISTON ASSY (STD)
Price unavailable
14
Required: 1
. PIN, PISTON
Price unavailable
Inner Circle Clip
15
Yamaha Motors
Inner Circle Clip93450-16115-00
Required: 2
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
16
Required: 1
. PISTON RING SET (STD)
Price unavailable
17
Required: 1
SPACER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
