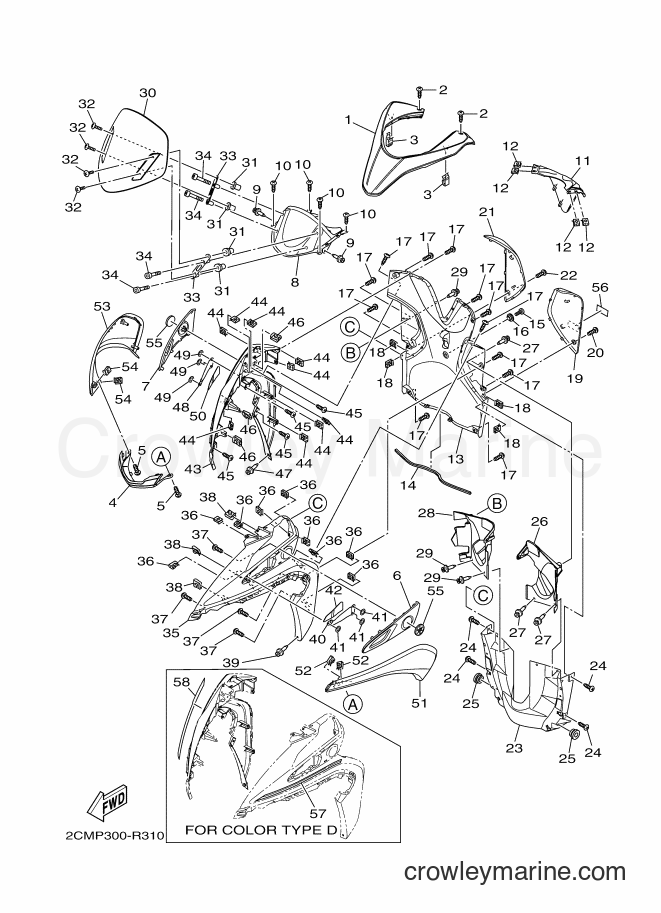

2016 Scooter MW125A - MW125A (2CMP) [010] LEG SHIELD diagram
![Yamaha Motors MW125A (2CMP) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/s8rVmDUD.png)
1
Required: 1
PANEL, FRONT (0903,SMX)
Price unavailable
2
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
3
Required: 2
HOOK
Price unavailable
4
Required: 1
PANEL, FRONT 2
Price unavailable
5
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
6
Required: 1
PANEL 1
Price unavailable
7
Required: 1
PANEL 2
Price unavailable
8
Required: 1
VISOR
Price unavailable
$1.10
You save $0.20
10
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
11
Required: 1
LEG SHIELD 2 (0903,SMX)
Price unavailable
12
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
13
Required: 1
LEG SHIELD 1
Price unavailable
14
Required: 1
DAMPER, PLATE
Price unavailable
$8.92
You save $1.57
16
Required: 1
COLLAR
Price unavailable
17
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 12
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
18
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
19
Required: 1
COVER 1 (0903,SMX)
Price unavailable
20
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
21
Required: 1
COVER 2 (0903,SMX)
Price unavailable
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
23
Required: 1
PANEL, INNER 1
Price unavailable
24
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
25
Required: 2
GROMMET
Price unavailable
26
Required: 1
PANEL, INNER 2
Price unavailable
$1.10
You save $0.20
28
Required: 1
PANEL, INNER 3
Price unavailable
$1.10
You save $0.20
30
Required: 1
WINDSHIELD, FR
Price unavailable
31
Required: 4
NUT
Price unavailable
32
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 4
SCREW, ROUND HEAD
$2.85
You save $0.50
33
Required: 2
STAY 2
Price unavailable
In stock
Only 2 remaining
$5.52
You save $0.97
35
Required: 1
BODY, COWLING (0903,SMX)
Price unavailable
36
Yamaha Motors
Spring Nut90183-05042-00
Required: 9
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
37
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
38
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 3
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
$1.10
You save $0.20
40
Required: 1
GRILL, AIR OUTLET 1
Price unavailable
41
Yamaha Motors
Spring Nut90183-06008-00
Required: 3
NUT, SPRING
Supersedes: 90183-06815-00
$8.07
You save $1.42
42
Required: 1
DAMPER, PLATE 1
Price unavailable
43
Required: 1
BODY, COWLING 2 (0903,SMX)
Price unavailable
44
Yamaha Motors
Spring Nut90183-05042-00
Required: 9
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
45
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
46
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 3
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
$1.10
You save $0.20
48
Required: 1
GRILL, AIR OUTLET 2
Price unavailable
49
Yamaha Motors
Spring Nut90183-06008-00
Required: 3
NUT, SPRING
Supersedes: 90183-06815-00
$8.07
You save $1.42
50
Required: 1
DAMPER, PLATE 2
Price unavailable
51
Required: 1
MOLE 1
Price unavailable
52
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
53
Required: 1
MOLE 2
Price unavailable
54
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
55
Required: 2
EMBLEM, 1
Price unavailable
56
Required: 1
LABEL, WARNING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
