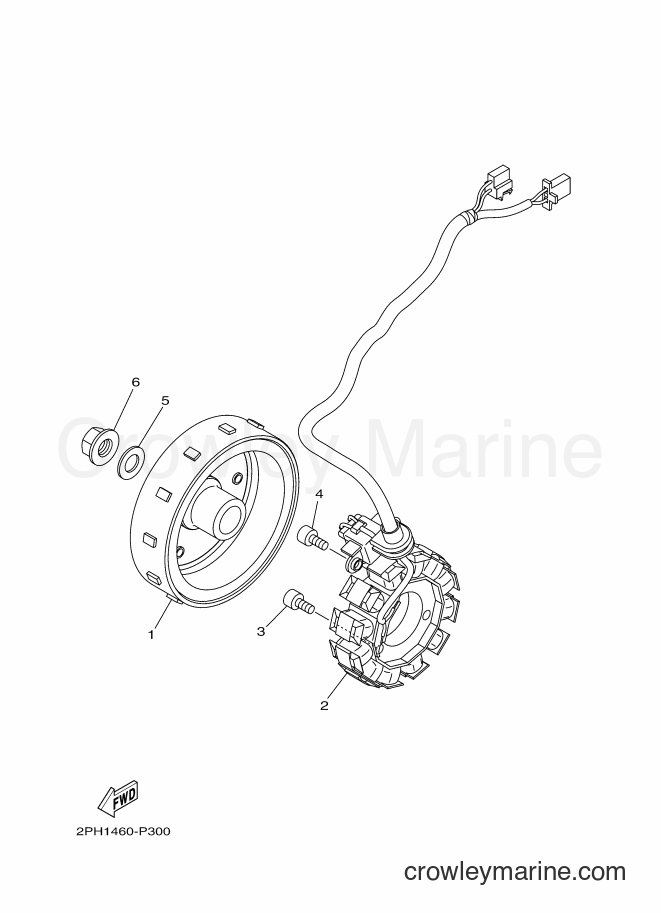

2016 Scooter LNS125 - LNS125 (2PH4) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNS125 (2PH4) [010] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
91311-06020-00
3
Yamaha Motors
91311-06020-0091312-06020-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
91311-06020-00
4
Yamaha Motors
91311-06020-0091312-06020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
5
Required: 1
WASHER, PLATE
Price unavailable
Nut
6
Yamaha Motors
Nut90179-12004-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
