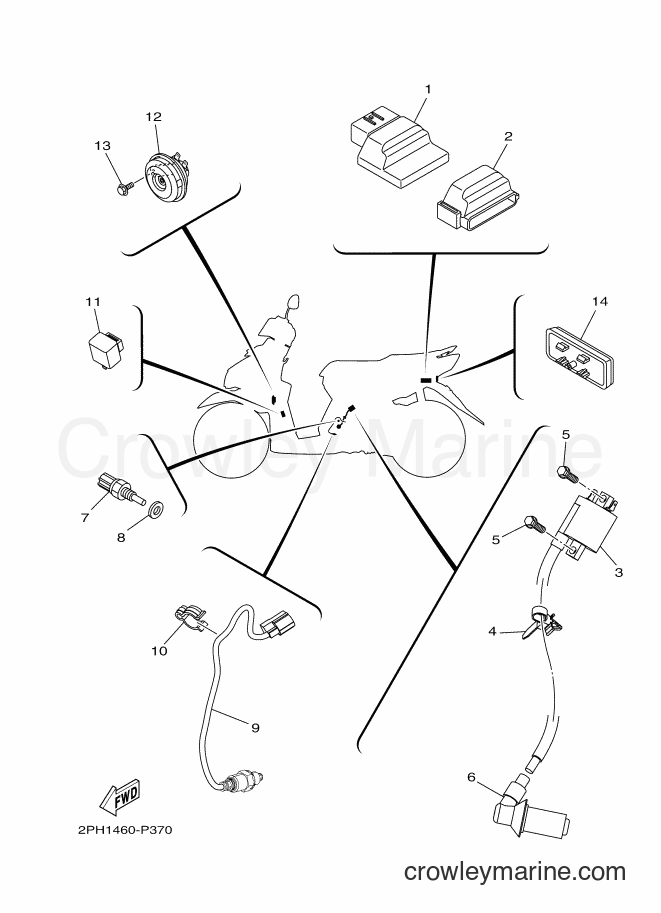

2016 Scooter LNS125 - LNS125 (2PH4) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNS125 (2PH4) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 1
CLAMP
Price unavailable
Flange Bolt
5
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
6
Required: 1
PLUG CAP ASSY
Price unavailable
Thermostat Unit
7
Yamaha Motors
Thermostat Unit52B-H3591-00-00
Required: 1
THERMO UNIT
Supersedes: 54P-H3591-00-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
Tank Cap Gasket
8
Yamaha Motors
Tank Cap Gasket90430-10804-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
9
Required: 1
SENSOR, OXYGEN
Price unavailable
10
Required: 1
CLAMP
Price unavailable
11
Required: 1
FLASHER RELAY ASSY
Price unavailable
12
Required: 1
HORN
Price unavailable
95817-06010-00
13
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
14
Required: 1
REAR REFLECTOR ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
