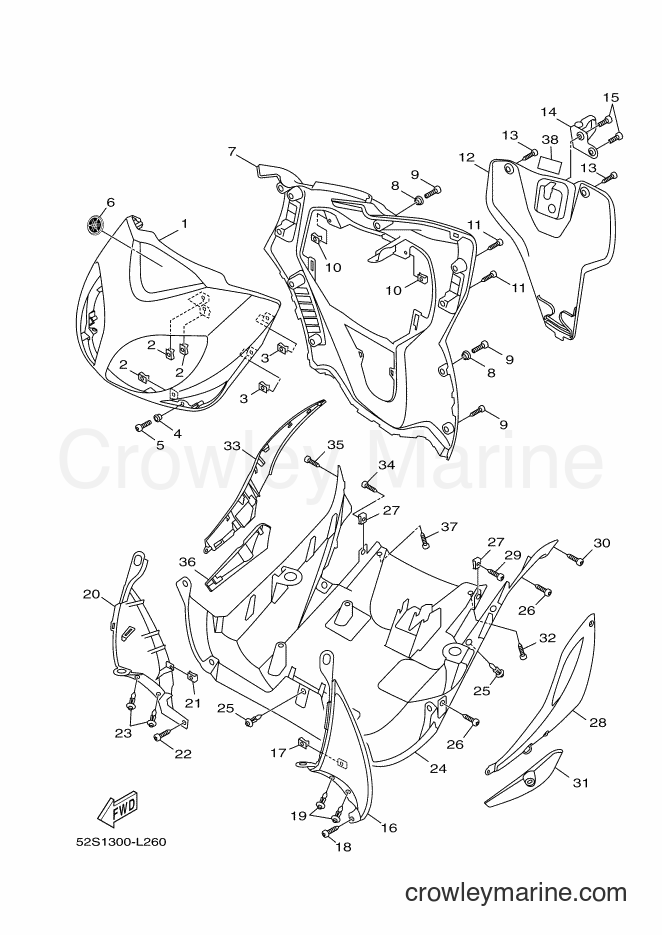

2016 Scooter HW151 - HW151 (52S3) [010] LEG SHIELD diagram
![Yamaha Motors HW151 (52S3) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/7zwioKqE.png)
1
Required: 1
BODY, COWLING
Price unavailable
$1.66
You save $0.29
$4.67
You save $0.82
4
Required: 2
COLLAR
Price unavailable
$8.92
You save $1.57
6
Yamaha Motors
Tuning Fork Mark5ST-F175B-01-00
Required: 1
TUNING FORK MARK
$5.52
You save $0.97
7
Required: 1
LEG SHIELD ASSY
Price unavailable
8
Required: 6
COLLAR
Price unavailable
$8.92
You save $1.57
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$1.36
You save $0.24
12
Required: 1
LID 1
Price unavailable
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
14
Required: 1
HOOK
Price unavailable
15
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
$3.49
You save $0.62
16
Required: 1
PANEL 1
Price unavailable
$1.66
You save $0.29
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$0.51
You save $0.09
20
Required: 1
PANEL 2
Price unavailable
$1.66
You save $0.29
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$0.51
You save $0.09
24
Required: 1
COVER, UNDER
Price unavailable
$0.51
You save $0.09
26
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
27
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
28
Required: 1
MOLE 1
Price unavailable
29
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
30
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
31
Required: 1
PROTECTOR 1
Price unavailable
32
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
33
Required: 1
MOLE 2
Price unavailable
34
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
35
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
36
Required: 1
PROTECTOR 2
Price unavailable
37
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
38
Required: 1
LABEL, WARNING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
