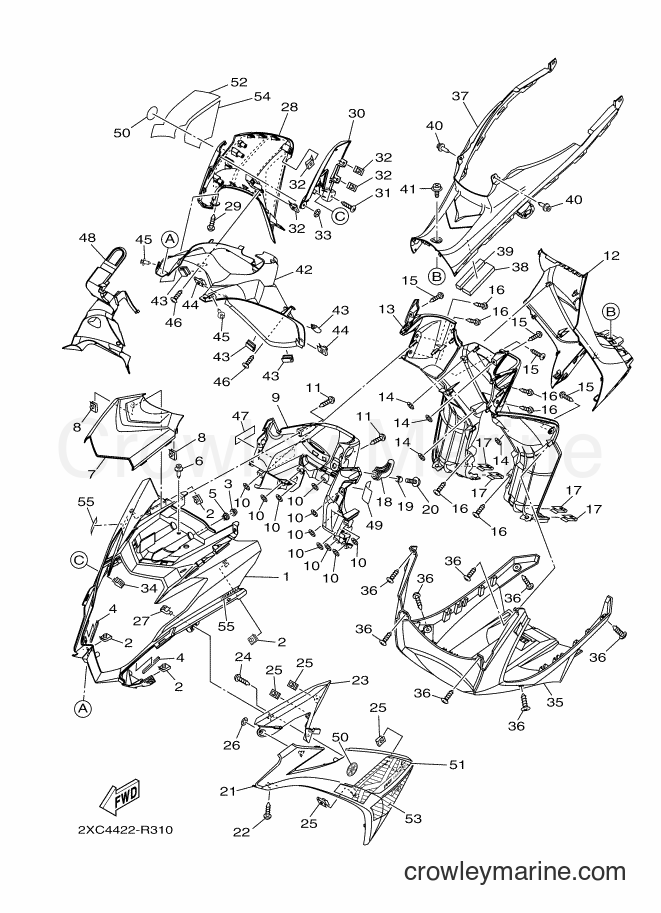

2016 Scooter AT125FC - AT125FC (2XC4) [010] LEG SHIELD 2 diagram
![Yamaha Motors AT125FC (2XC4) [010] - LEG SHIELD 2](https://cdn.crowleymarine.com/yamaha/0bHwxFJc.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$2.00
You save $0.35
4
Required: 2
MOLD, FRONT
Price unavailable
$5.94
You save $1.05
$1.10
You save $0.20
7
Required: 1
COVER, HEADLIGHT
Price unavailable
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
9
Required: 1
LEG SHIELD 2
Price unavailable
$8.07
You save $1.42
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
PANEL, INNER 1
Price unavailable
13
Required: 1
MOLD, LEG SHIELD
Price unavailable
$8.07
You save $1.42
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
16
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
17
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
18
Required: 1
HOOK 1
Price unavailable
19
Required: 1
COLLAR
Price unavailable
20
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
21
Required: 1
PANEL 1
Price unavailable
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
23
Required: 1
COVER, FLASHER 1
Price unavailable
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
25
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$8.07
You save $1.42
27
Required: 1
HOOK
Price unavailable
28
Required: 1
PANEL 2
Price unavailable
29
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
30
Required: 1
COVER, FLASHER 2
Price unavailable
31
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
32
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$8.07
You save $1.42
34
Required: 1
HOOK
Price unavailable
35
Required: 1
COVER, UNDER
Price unavailable
36
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
37
Required: 1
COVER 2
Price unavailable
38
Required: 1
DAMPER, PLATE
Price unavailable
39
Required: 1
DAMPER, PLATE
Price unavailable
$1.10
You save $0.20
41
Required: 1
SCREW, WITH WASHER
Price unavailable
42
Required: 1
FENDER, INNER
Price unavailable
43
Required: 4
DAMPER, PLATE
Price unavailable
44
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$1.10
You save $0.20
46
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
47
Required: 1
LABEL, NOTICE 1
Price unavailable
48
Required: 1
FLAP, FRONT FENDER
Price unavailable
49
Required: 1
LABEL, CAUTION
Price unavailable
50
Required: 2
TUNING FORK MARK
Price unavailable
51
Required: 1
GRAPHIC 19
Price unavailable
52
Required: 1
GRAPHIC 20
Price unavailable
53
Required: 1
GRAPHIC 21
Price unavailable
54
Required: 1
GRAPHIC 22
Price unavailable
55
Yamaha Motors
YAMAHA EMBLEM99244-00080-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 99234-00080-00
$14.87
You save $2.62
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
