All diagrams for this model

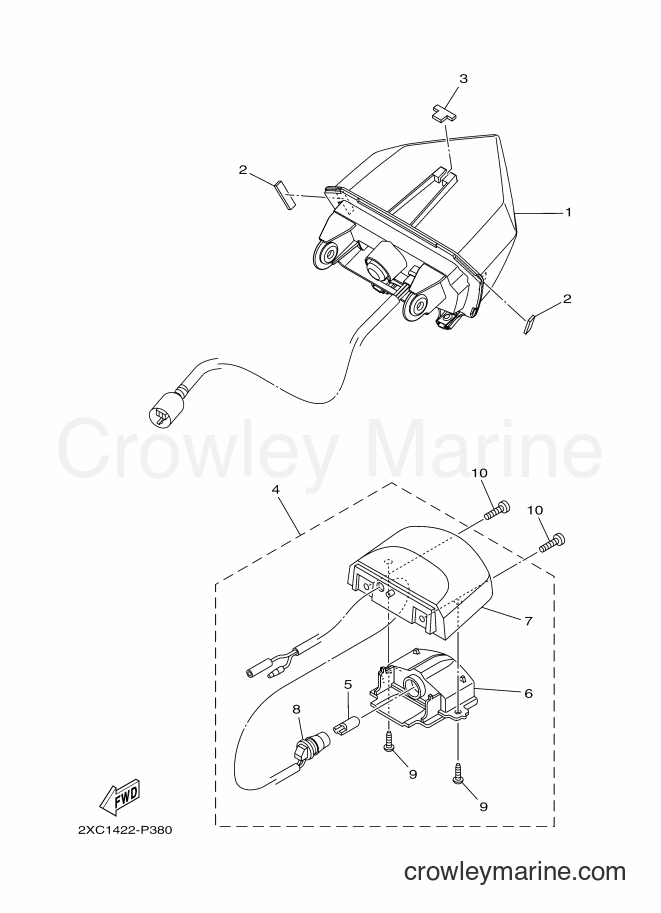

2016 Scooter AT125FC - AT125FC (2XC6) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (2XC6) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 2
DAMPER
Price unavailable
3
Required: 1
DAMPER
Price unavailable
4
Required: 1
LICENCE LIGHT UNIT ASSY
Price unavailable
5
Required: 1
. BULB (12V-3.4W)
Price unavailable
6
Required: 1
. LICENCE LIGHT ASSY
Price unavailable
7
Required: 1
. COVER, LICENCE LIGHT
Price unavailable
8
Required: 1
. CORD, LICENCE LIGHT
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-40612-00
Required: 2
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
10
Required: 2
SCREW, BINDING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
