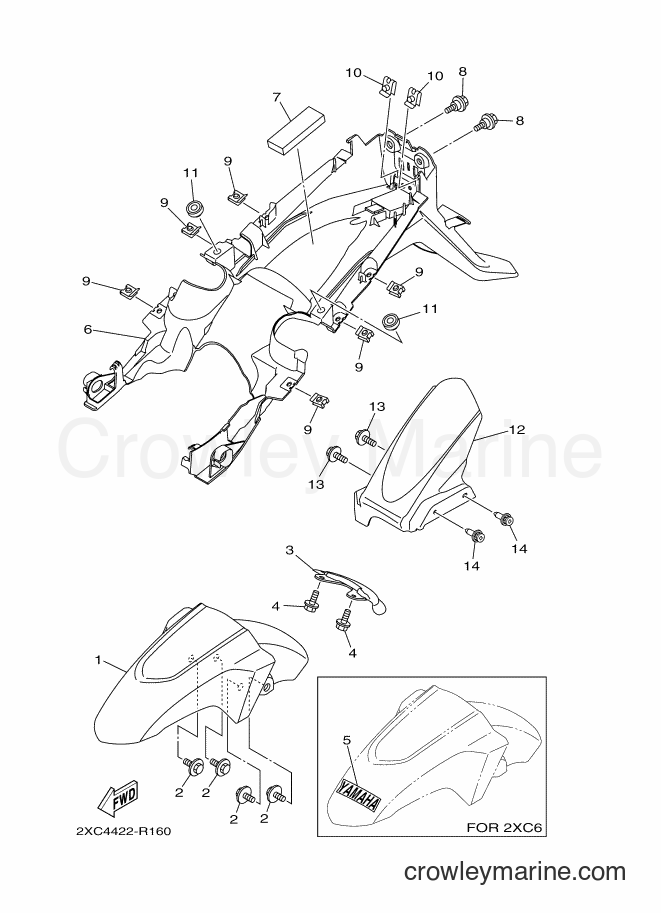

2016 Scooter AT125FC - AT125FC (2XC4) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (2XC4) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 4
BOLT, WITH WASHER
Price unavailable
3
Required: 1
FENDER, INNER 2
Price unavailable
Bolt with Washer
4
Yamaha Motors
Bolt with Washer90119-06137-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 1
EMBLEM, YAMAHA
Price unavailable
6
Required: 1
FENDER, REAR
Price unavailable
7
Required: 1
DAMPER, PLATE
Price unavailable
Spring Nut
10
Yamaha Motors
Spring Nut90183-05061-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
11
Required: 2
PAD, SEAT
Price unavailable
12
Required: 1
REAR FENDER COMP.
Price unavailable
Bolt with Washer
13
Yamaha Motors
Bolt with Washer90119-06051-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
RIVET
14
Yamaha Motors
RIVET90269-06812-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
