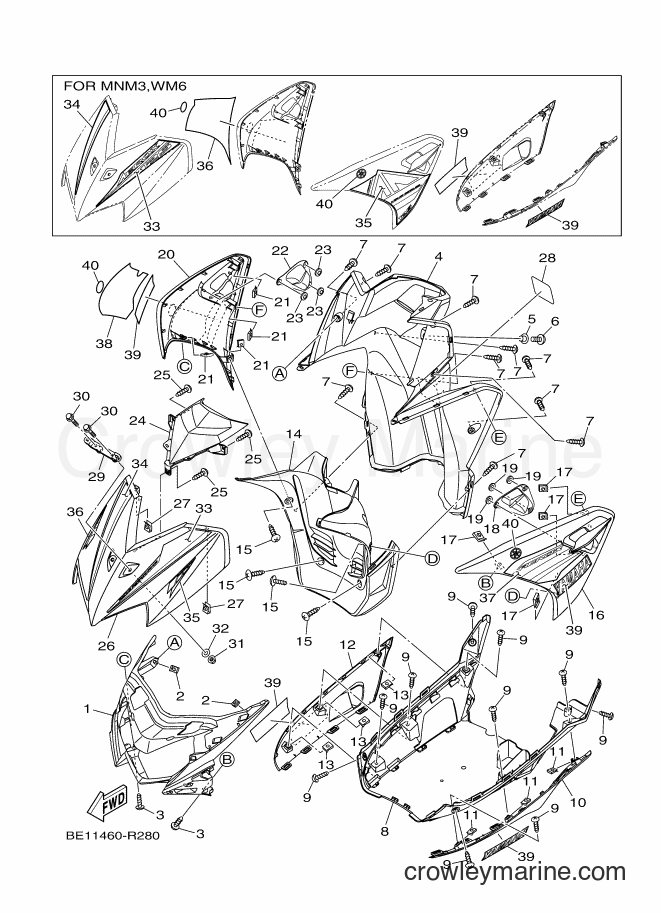

2016 Scooter AL125FC - AL125FC (BE11) [010] LEG SHIELD diagram
![Yamaha Motors AL125FC (BE11) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/7zYZfzgM.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
-50%
2
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
3
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
4
Required: 1
LEG SHIELD ASSY
Price unavailable
5
Required: 1
COLLAR
Price unavailable
6
Yamaha Motors
BOLT (44D1)90111-06839-00
Required: 1
BOLT,HEX. SOCKET BUTTON
$0.42
You save $0.08
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 10
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
8
Required: 1
COVER, UNDER
Price unavailable
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 10
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
10
Required: 1
MOLE 1
Price unavailable
-50%
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
12
Required: 1
MOLE 2
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Required: 1
FENDER, INNER
Price unavailable
15
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
16
Required: 1
PANEL 1
Price unavailable
-50%
17
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
18
Required: 1
PLATE 1
Price unavailable
$0.81
You save $0.14
20
Required: 1
PANEL 2
Price unavailable
-50%
21
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
22
Required: 1
PLATE 2
Price unavailable
$0.81
You save $0.14
24
Required: 1
PANEL, FRONT
Price unavailable
25
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
26
Required: 1
PANEL, FRONT 2
Price unavailable
-50%
27
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
28
Required: 1
LABEL, WARNING
Price unavailable
29
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
30
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06030-00
$3.95
You save $0.70
In stock
Only 1 remaining
$2.21
You save $0.39
32
Yamaha Motors
Plain Washer90201-06088-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
33
Required: 1
GRAPHIC 1
Price unavailable
34
Required: 1
GRAPHIC 2
Price unavailable
35
Required: 1
GRAPHIC 3
Price unavailable
36
Required: 1
GRAPHIC 4
Price unavailable
37
Required: 1
GRAPHIC 5
Price unavailable
38
Required: 1
GRAPHIC 6
Price unavailable
39
Required: 2
EMBLEM
Price unavailable
40
Required: 2
EMBLEM
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
