All diagrams for this model

2015 Scooter YN50FT - YN50FT (2ACL) [020] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

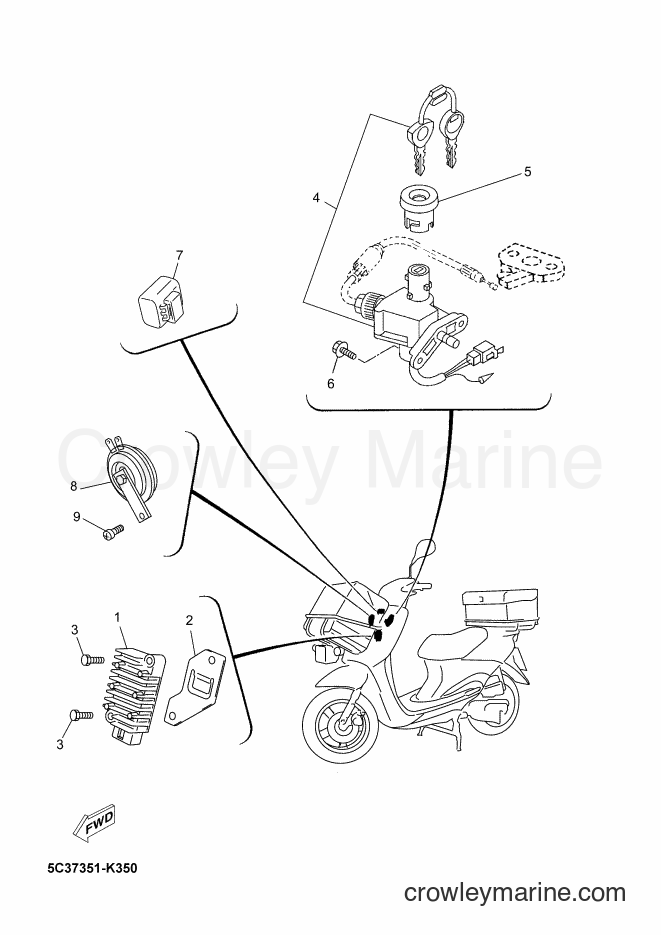

Yamaha Motors YN50FT (2ACL) [020] - ELECTRICAL 1
Change View:
Rectifier/Regulator Assembly
1
Yamaha Motors
Rectifier/Regulator Assembly3TJ-81960-02-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$184.99
$157.24
You save $27.75
More details
2
Required: 1
BRACKET, REGULATOR
Price unavailable
Flange Bolt
3
Yamaha Motors
Flange Bolt9502L-06030-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.65
$0.55
You save $0.10
More details
4
Required: 1
MAIN SWITCH ASSY
Price unavailable
4
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
5
Required: 1
CAP, SWITCH
Price unavailable
5
Required: 1
CAP, SWITCH
Price unavailable
6
Required: 2
BOLT
Price unavailable
7
Required: 1
FLASHER RELAY ASSY
Price unavailable
8
Required: 1
HORN
Price unavailable
Flange Bolt
9
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
