2015 Scooter XC115S - XC115S (1DR6) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

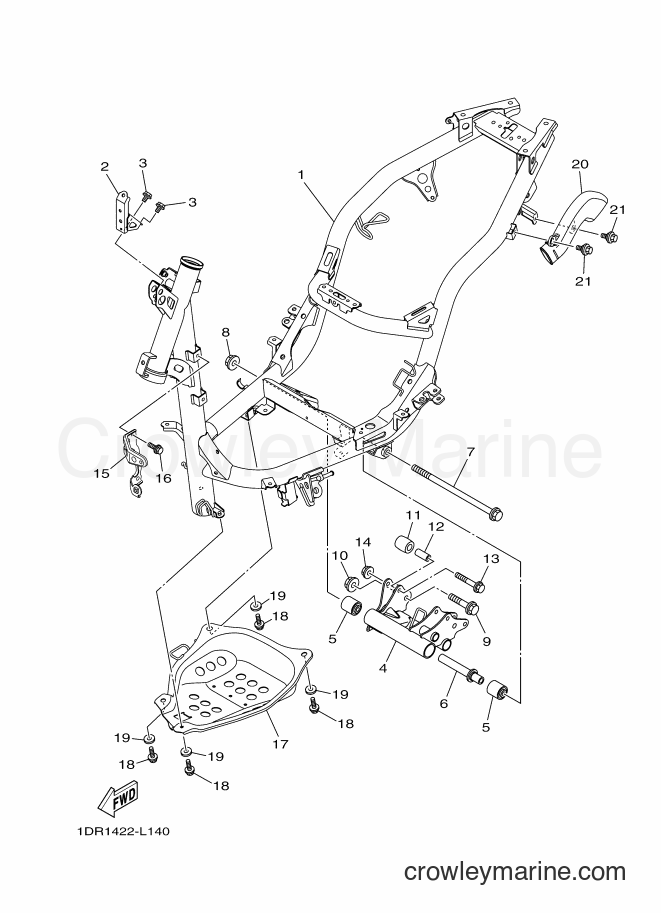

Yamaha Motors XC115S (1DR6) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
BRACKET, HORN
Price unavailable
95817-06010-00
3
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
4
Required: 1
ENGINE BRACKET COMP.
Price unavailable
5
Required: 2
DAMPER
Price unavailable
6
Required: 1
SPACER
Price unavailable
7
Required: 1
BOLT, FLANGE
Price unavailable
Flange Bolt
9
Yamaha Motors
Flange Bolt90105-10283-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
11
Required: 2
STOPPER, MAIN STAND
Price unavailable
12
Required: 2
COLLAR
Price unavailable
13
Required: 2
BOLT, FLANGE
Price unavailable
Self Locking Nut
14
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
15
Required: 1
STAY 1
Price unavailable
Flange Bolt
16
Yamaha Motors
Flange Bolt95812-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
17
Required: 1
BRACKET, FRONT LOWER 1
Price unavailable
Bolt with Washer
18
Yamaha Motors
Bolt with Washer90119-068A2-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.80
$0.68
You save $0.12
More details
19
Required: 4
WASHER, PLATE
Price unavailable
20
Required: 1
DUCT 1
Price unavailable
BOLT
21
Yamaha Motors
BOLT90109-06887-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
