2015 Street Bike VP250 - VP250 (5B2C) [040] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

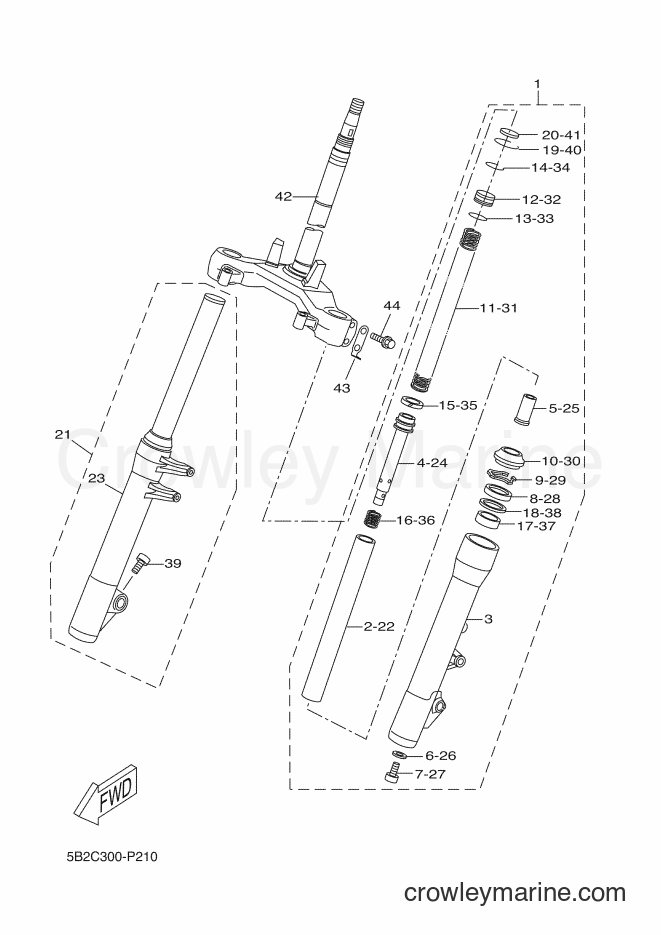

Yamaha Motors VP250 (5B2C) [040] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. INNER TUBE COMP.1
Price unavailable
3
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
4
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
5
Required: 1
. SPACER, OIL LOCK
Price unavailable
Tank Cap Gasket
6
Yamaha Motors
Tank Cap Gasket4P9-F3158-00-00
Required: 1
. GASKET
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
HEXAGON SOCKET BOLT
7
Yamaha Motors
HEXAGON SOCKET BOLT4P9-F3181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
8
Required: 1
. OIL SEAL
Price unavailable
9
Required: 1
. CLIP
Price unavailable
10
Required: 1
. SEAL, DUST
Price unavailable
11
Required: 1
. SPRING, FRONT FORK
Price unavailable
12
Required: 1
. BOLT, CAP
Price unavailable
13
Required: 1
. O-RING
Price unavailable
14
Required: 1
. RING, SNAP
Price unavailable
15
Required: 1
. RING, PISTON
Price unavailable
16
Required: 1
. SPRING, REBOUND
Price unavailable
17
Required: 1
. METAL, SLIDE 1
Price unavailable
18
Required: 1
. WASHER, OIL SEAL
Price unavailable
19
Required: 1
. CIRCLIP
Price unavailable
20
Required: 1
. CAP
Price unavailable
21
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
22
Required: 1
. INNER TUBE COMP.1
Price unavailable
23
Required: 1
. TUBE, OUTER
Price unavailable
24
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
25
Required: 1
. SPACER, OIL LOCK
Price unavailable
Tank Cap Gasket
26
Yamaha Motors
Tank Cap Gasket4P9-F3158-00-00
Required: 1
. GASKET
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
HEXAGON SOCKET BOLT
27
Yamaha Motors
HEXAGON SOCKET BOLT4P9-F3181-00-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
28
Required: 1
. OIL SEAL
Price unavailable
29
Required: 1
. CLIP
Price unavailable
30
Required: 1
. SEAL, DUST
Price unavailable
31
Required: 1
. SPRING, FRONT FORK
Price unavailable
32
Required: 1
. BOLT, CAP
Price unavailable
33
Required: 1
. O-RING
Price unavailable
34
Required: 1
. RING, SNAP
Price unavailable
35
Required: 1
. RING, PISTON
Price unavailable
36
Required: 1
. SPRING, REBOUND
Price unavailable
37
Required: 1
. METAL, SLIDE 1
Price unavailable
38
Required: 1
. WASHER, OIL SEAL
Price unavailable
39
Required: 1
. BOLT
Price unavailable
40
Required: 1
. CIRCLIP
Price unavailable
41
Required: 1
. CAP
Price unavailable
42
Required: 1
UNDER BRACKET COMP.
Price unavailable
43
Required: 1
BRACKET 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
