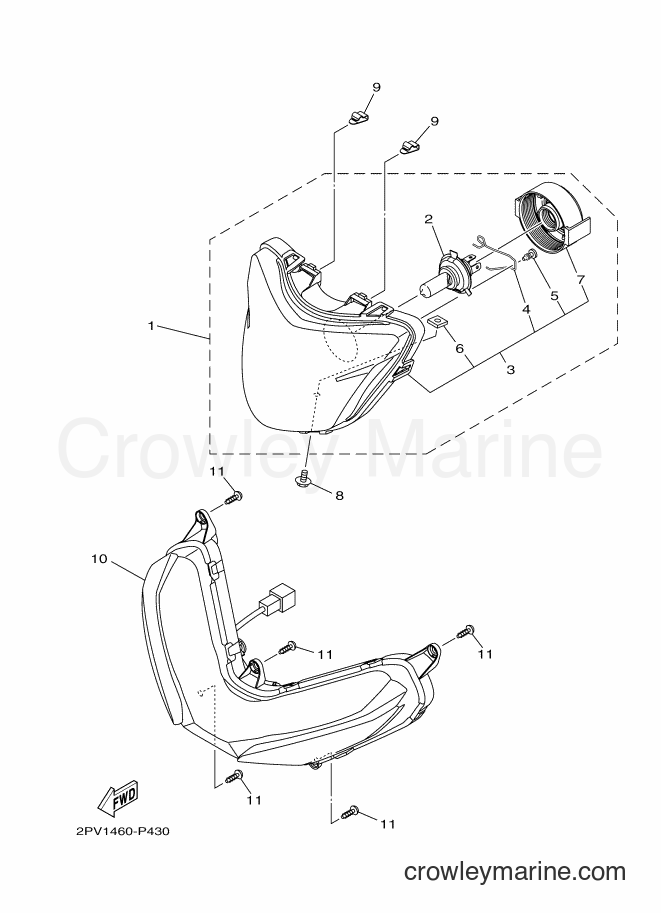

2015 Scooter T150 - T150 (2PV3) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T150 (2PV3) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB, HEADLIGHT (12V-35/35W)
Price unavailable
3
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
4
Required: 1
. . SPRING
Price unavailable
5
Required: 1
. . SCREW
Price unavailable
6
Required: 1
. . NUT
Price unavailable
7
Required: 1
. . COVER, SOCKET
Price unavailable
Bolt with Washer
8
Yamaha Motors
Bolt with Washer90119-06155-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 2
CLIP
Price unavailable
10
Required: 1
PILOT LIGHT ASSY 1
Price unavailable
Tapping Screw
11
Yamaha Motors
Tapping Screw97702-50016-00
Required: 5
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
