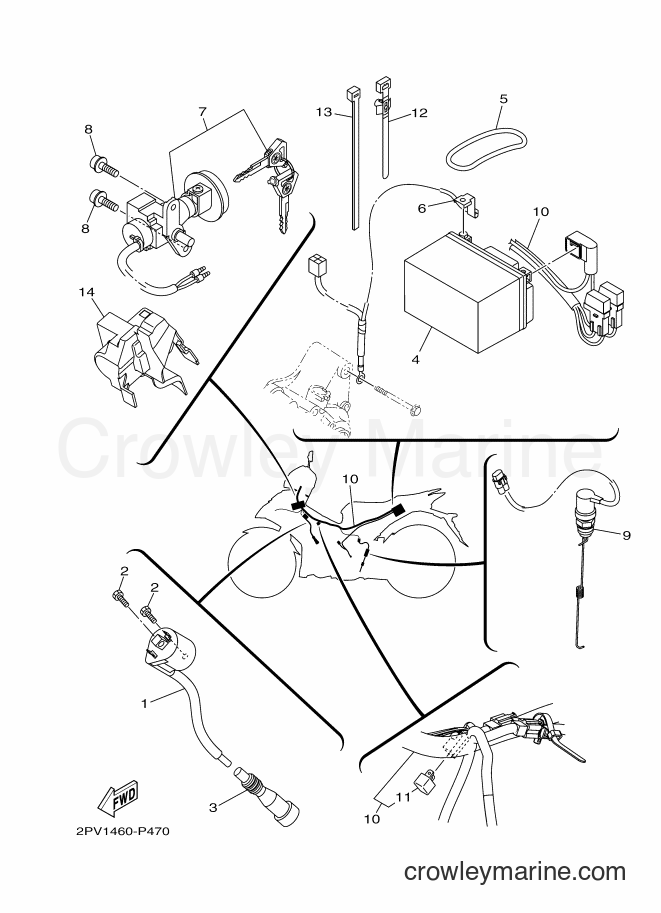

2015 Scooter T150E - T150E (2PV2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T150E (2PV2) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon bolt
2
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 2
BOLT, HEXAGON
Supersedes: 97002-06016-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
BATTERY ASSY (GS GZ4V)
Price unavailable
4
Required: 1
BATTERY ASSY (YUASA YTZ4V)
Price unavailable
BATTERY BAND
5
Yamaha Motors
BATTERY BAND5VV-H2131-00-00
Required: 1
BAND, BATTERY
Supersedes: 5TL-H2131-00-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
6
Required: 1
WIRE, MINUS LEAD
Price unavailable
7
Required: 1
MAIN SWITCH COMP.
Price unavailable
8
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
9
Required: 1
STOP SWITCH ASSY
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
Diode Assembly
11
Yamaha Motors
Diode Assembly3WP-81980-00-00
Required: 1
. DIODE ASSY
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
Clamp
12
Yamaha Motors
Clamp90464-34002-00
Required: 4
CLAMP
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Clamp
13
Yamaha Motors
Clamp90464-50800-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
14
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
