2015 Scooter T115FSE - T115FSE (2SU1) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

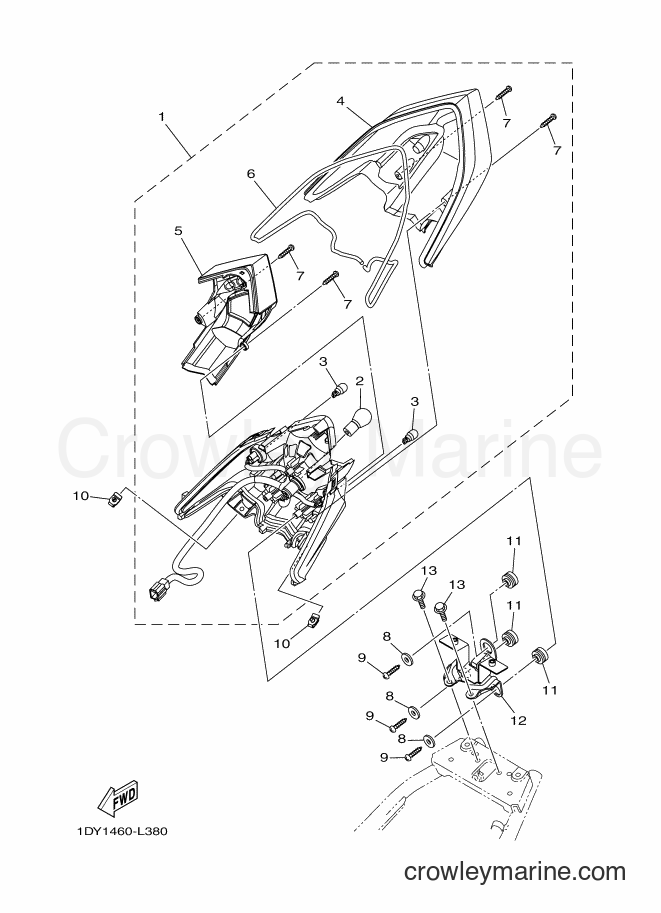

Yamaha Motors T115FSE (2SU1) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V-21/5W)
Price unavailable
3
Required: 2
. BULB (12V-10W) AMBER
Price unavailable
4
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
5
Required: 1
. LENS, TAILLIGHT
Price unavailable
6
Required: 1
. GASKET, TAIL LENS
Price unavailable
Tapping Screw
7
Yamaha Motors
Tapping Screw97707-40616-00
Required: 4
. SCREW, TAPPING
Supersedes: 97702-40616-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Plain Washer
8
Yamaha Motors
Plain Washer90201-06033-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Truss Screw
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50014-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 2
NUT, SPRING
Price unavailable
11
Required: 3
GROMMET
Price unavailable
12
Required: 1
BRACKET, TAILLIGHT
Price unavailable
13
Required: 2
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
