All diagrams for this model

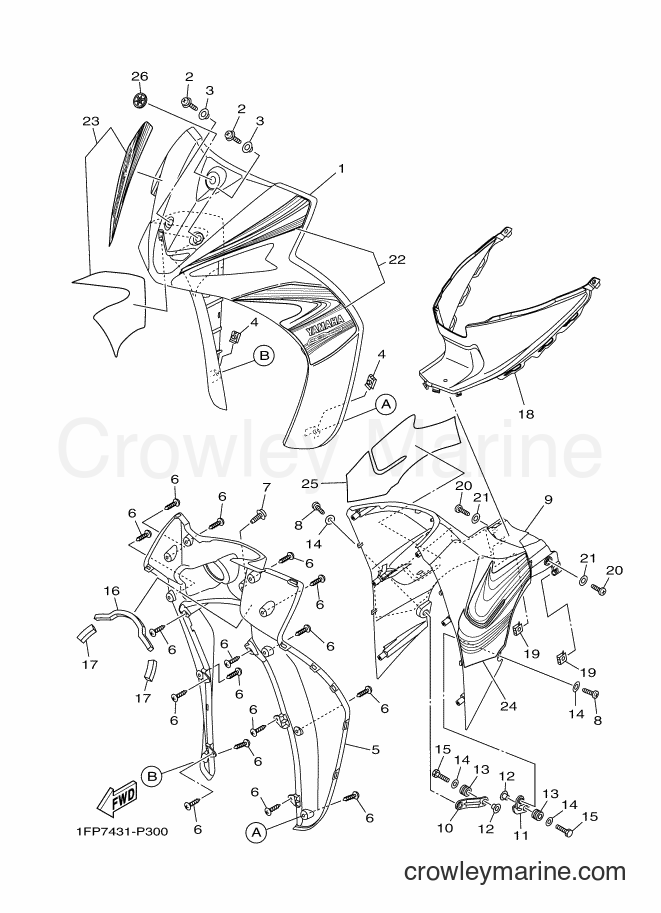

2015 Scooter T115FLSEC - T115FLSEC (1FP7) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSEC (1FP7) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1 (1121,SMY)
Price unavailable
2
Required: 2
SCREW, WITH WASHER
Price unavailable
3
Required: 2
COLLAR
Price unavailable
4
Required: 2
NUT, SPRING
Price unavailable
5
Required: 1
LEG SHIELD 2
Price unavailable
Tapping Screw
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 16
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
7
Required: 1
SCREW, WITH WASHER
Price unavailable
Binding Screw
8
Yamaha Motors
Binding Screw98907-06020-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
COVER 1 (1175,MC1)
Price unavailable
10
Required: 1
STAY 1
Price unavailable
11
Required: 1
STAY 2
Price unavailable
12
Required: 2
COLLAR
Price unavailable
13
Required: 2
GROMMET
Price unavailable
Plate Washer
14
Yamaha Motors
Plate Washer90201-06557-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Hexagon Bolt
15
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97007-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
16
Required: 1
DAMPER, PLATE
Price unavailable
17
Required: 2
DAMPER, PLATE
Price unavailable
18
Required: 1
COVER 2 (0033,YB)
Price unavailable
19
Required: 2
NUT, SPRING
Price unavailable
Binding Screw
20
Yamaha Motors
Binding Screw98907-06020-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
21
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
22
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
23
Required: 1
GRAPHIC SET, LEG SHIELD 2
Price unavailable
24
Required: 1
GRAPHIC 23
Price unavailable
25
Required: 1
GRAPHIC 24
Price unavailable
26
Required: 1
TUNING FORK MARK
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
