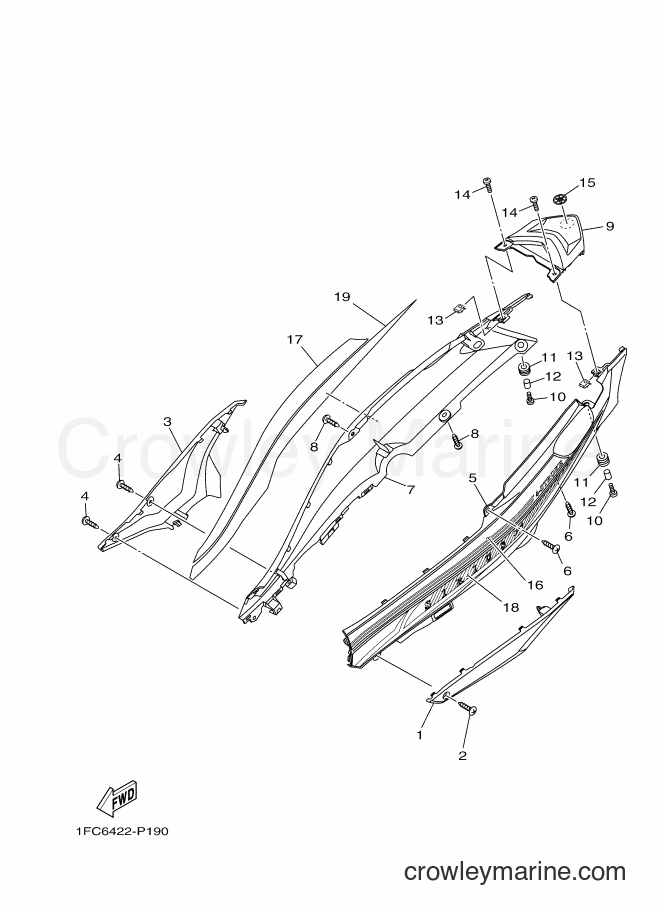

2015 Scooter T115FLE - T115FLE (1FCB) [010] SIDE COVER 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLE (1FCB) [010] - SIDE COVER 2
Change View:
1
Required: 1
COVER, SIDE 1 (0033,YB)
Price unavailable
Tapping Screw
2
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
3
Required: 1
COVER, SIDE 2 (0033,YB)
Price unavailable
Tapping Screw
4
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
5
Required: 1
COVER, SIDE 3 (1121,SMY)
Price unavailable
Tapping Screw
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
7
Required: 1
COVER, SIDE 4 (1121,SMY)
Price unavailable
Tapping Screw
8
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
9
Required: 1
COVER, SIDE 5 (1121,SMY)
Price unavailable
Tapping Screw
10
Yamaha Motors
Tapping Screw90167-05078-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GROMMET (3P91)
11
Yamaha Motors
GROMMET (3P91)90480-12808-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
12
Required: 2
COLLAR
Price unavailable
Tapping Screw
14
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
15
Required: 1
TUNING FORK MARK
Price unavailable
16
Required: 1
GRAPHIC, 5
Price unavailable
17
Required: 1
GRAPHIC, 6
Price unavailable
18
Required: 1
GRAPHIC 7
Price unavailable
19
Required: 1
GRAPHIC 8
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
