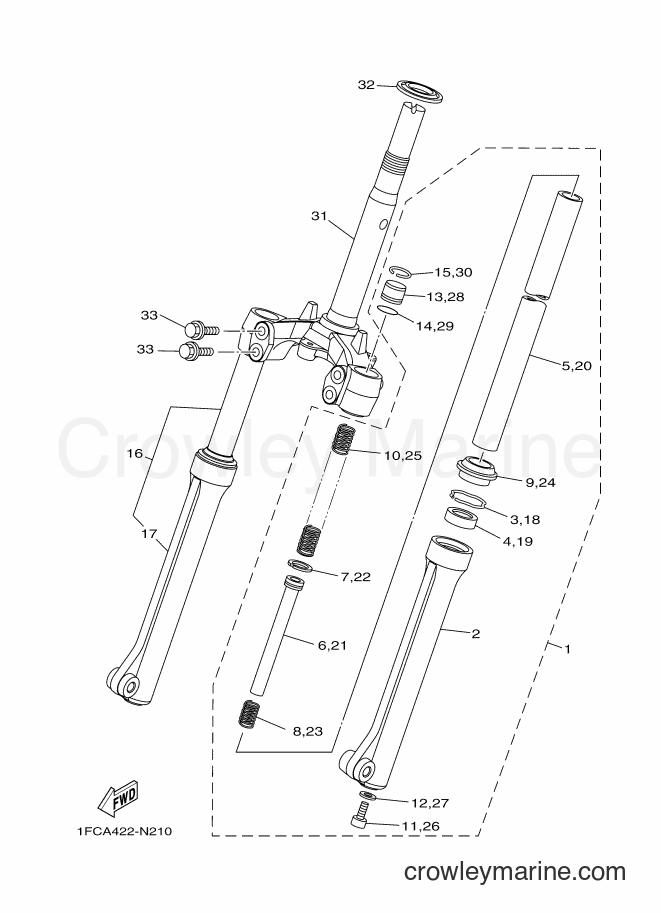

2015 Scooter T115FLSE - T115FLSE (1FC7) [010] FRONT FORK 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLSE (1FC7) [010] - FRONT FORK 2
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
Snap Ring
3
Yamaha Motors
Snap Ring4RT-F3153-00-00
Required: 1
. RING, SNAP
Cross Ship
Leaves in 2-5 days
$4.25
$3.61
You save $0.64
More details
4
Required: 1
. OIL SEAL
Price unavailable
5
Required: 1
. INNER TUBE COMP.1
Price unavailable
6
Required: 1
. PISTON, FRONT FORK
Price unavailable
PISTON RING
7
Yamaha Motors
PISTON RING1FP-F3157-00-00
Required: 1
. RING, PISTON
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Rebound Spring
8
Yamaha Motors
Rebound Spring49P-F3151-00-00
Required: 1
. SPRING, REBOUND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
. SEAL, DUST
Price unavailable
10
Required: 1
. SPRING, FRONT FORK
Price unavailable
11
Required: 1
. BOLT 2
Price unavailable
12
Required: 1
. GASKET
Price unavailable
13
Required: 1
. BOLT, CAP
Price unavailable
14
Required: 1
. O-RING
Price unavailable
15
Required: 1
. CIRCLIP
Price unavailable
16
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
17
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
Snap Ring
18
Yamaha Motors
Snap Ring4RT-F3153-00-00
Required: 1
. RING, SNAP
Cross Ship
Leaves in 2-5 days
$4.25
$3.61
You save $0.64
More details
19
Required: 1
. OIL SEAL
Price unavailable
20
Required: 1
. INNER TUBE COMP.1
Price unavailable
21
Required: 1
. PISTON, FRONT FORK
Price unavailable
PISTON RING
22
Yamaha Motors
PISTON RING1FP-F3157-00-00
Required: 1
. RING, PISTON
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Rebound Spring
23
Yamaha Motors
Rebound Spring49P-F3151-00-00
Required: 1
. SPRING, REBOUND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
24
Required: 1
. SEAL, DUST
Price unavailable
25
Required: 1
. SPRING, FRONT FORK
Price unavailable
26
Required: 1
. BOLT 2
Price unavailable
27
Required: 1
. GASKET
Price unavailable
28
Required: 1
. BOLT, CAP
Price unavailable
29
Required: 1
. O-RING
Price unavailable
30
Required: 1
. CIRCLIP
Price unavailable
31
Required: 1
UNDER BRACKET COMP.
Price unavailable
BALL RACE
32
Yamaha Motors
BALL RACE4FP-F3411-10-00
Required: 1
RACE, BALL 1
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
33
Required: 4
BOLT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
