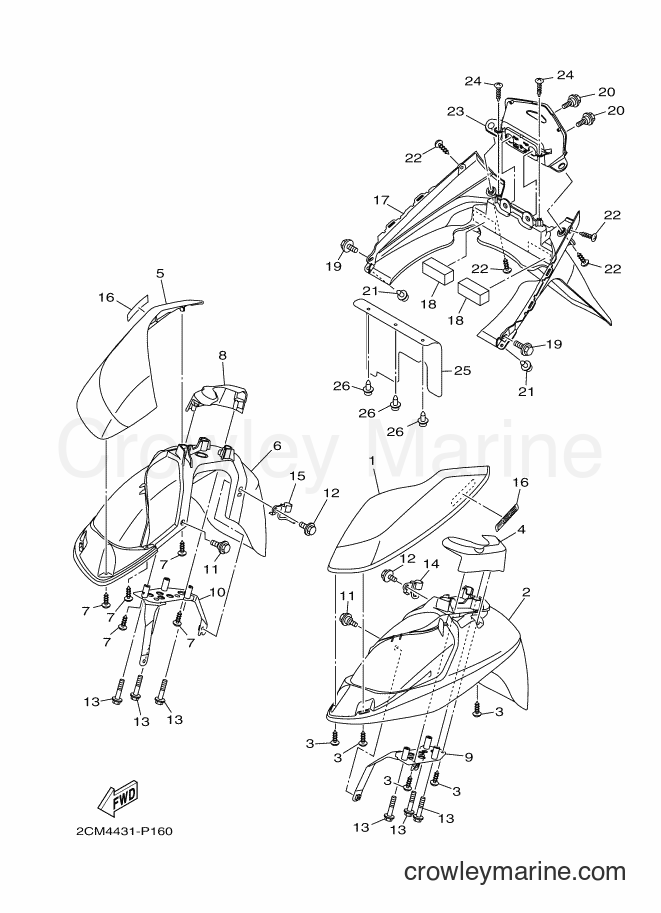

2015 Scooter MW125A - MW125A (2CM2) [010] FENDER diagram
![Yamaha Motors MW125A (2CM2) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/dkHDCtDK.png)
1
Required: 1
FENDER, OVER 1 (0903, SMX)
Price unavailable
2
Required: 1
FENDER, INNER
Price unavailable
3
Yamaha Motors
Tapping Screw97707-40014-00
Required: 5
SCREW, TAPPING
$7.22
You save $1.27
4
Required: 1
FENDER, OVER 3
Price unavailable
5
Required: 1
FENDER, OVER 2 (0903,SMX)
Price unavailable
6
Required: 1
FENDER, INNER 2
Price unavailable
7
Yamaha Motors
Tapping Screw97707-40014-00
Required: 5
SCREW, TAPPING
$7.22
You save $1.27
8
Required: 1
FENDER, OVER 3
Price unavailable
9
Required: 1
STAY, FENDER 1
Price unavailable
10
Required: 1
STAY, FENDER 2
Price unavailable
$1.70
You save $0.30
12
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95822-06012-00
In stock
5+ in stock
$1.66
You save $0.29
$4.67
You save $0.82
14
Required: 1
HOLDER,WIRE 1
Price unavailable
15
Required: 1
HOLDER, WIRE 2
Price unavailable
16
Required: 2
EMBLEM
Price unavailable
17
Required: 1
FENDER, REAR
Price unavailable
18
Required: 2
DAMPER, LOCATING
Price unavailable
19
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
$1.70
You save $0.30
$1.10
You save $0.20
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
23
Required: 1
FENDER 2
Price unavailable
24
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
25
Required: 1
FLAP
Price unavailable
$1.10
You save $0.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
