All diagrams for this model

2015 Scooter MW125A - MW125A (2CM2) [050] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

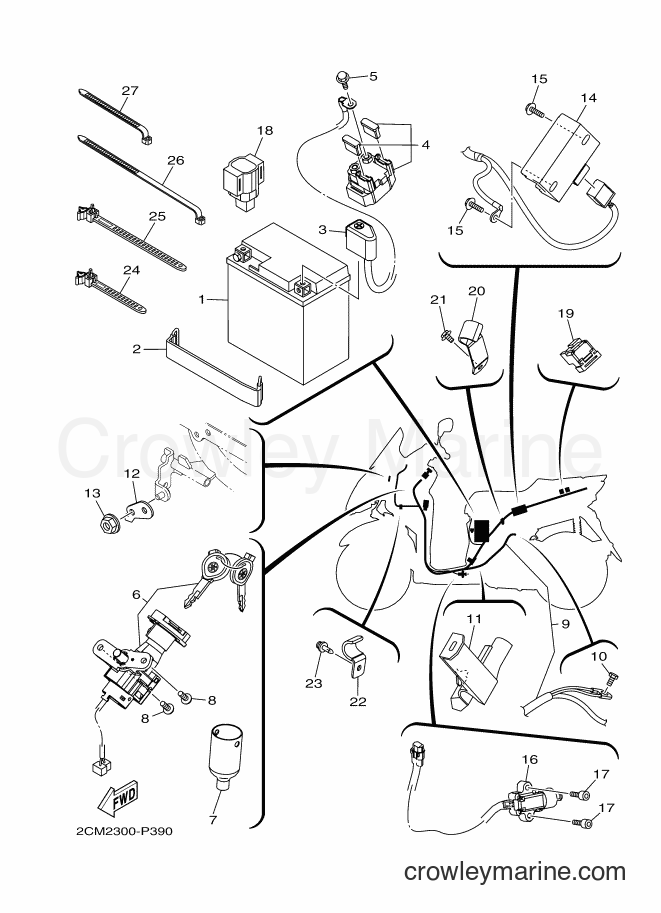

Yamaha Motors MW125A (2CM2) [050] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (YUASA YTZ7V)
Price unavailable
2
Required: 1
BAND, BATTERY
Price unavailable
3
Required: 1
WIRE, PLUS LEAD
Price unavailable
4
Required: 1
STARTER RELAY ASSY
Price unavailable
6
Required: 1
MAIN SWITCH COMP.
Price unavailable
7
Required: 1
COVER, CONNECTER
Price unavailable
8
Required: 2
SCREW
Price unavailable
9
Required: 1
WIRE HARNESS ASSY
Price unavailable
97013-06012-00
10
Yamaha Motors
97013-06012-0097003-06012-00
Required: 1
BOLT
Supersedes: 97002-06012-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
11
Required: 1
COVER
Price unavailable
12
Required: 1
HOLDER, WIRE HARNESS 3
Price unavailable
14
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
15
Yamaha Motors
Flange Bolt90105-06060-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
16
Required: 1
SWITCH, SIDE STAND
Price unavailable
Socket Bolt
17
Yamaha Motors
Socket Bolt91317-05016-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05011-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
SENSOR, LEAN ANGLE
18
Yamaha Motors
SENSOR, LEAN ANGLE1PA-H2576-01-00
Required: 1
SENSOR, LEAN ANGLE
Supersedes: 1PA-H2576-00-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Starter Relay
19
Yamaha Motors
Starter Relay8DM-81950-11-00
Required: 1
RELAY ASSY (8DM-11)
Cross Ship
Leaves in 2-5 days
$33.99
$28.89
You save $5.10
More details
20
Required: 1
CLAMP
Price unavailable
95817-06010-00
21
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
22
Required: 2
CLAMP
Price unavailable
RIVET
23
Yamaha Motors
RIVET90269-06812-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
24
Required: 5
CLAMP
Price unavailable
25
Required: 2
CLAMP
Price unavailable
26
Required: 2
CLAMP
Price unavailable
Clamp
27
Yamaha Motors
Clamp90464-15195-00
Required: 4
CLAMP
Supersedes: 90464-13073-00
Cross Ship
Leaves in 2-5 days
$4.41
$3.75
You save $0.66
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
