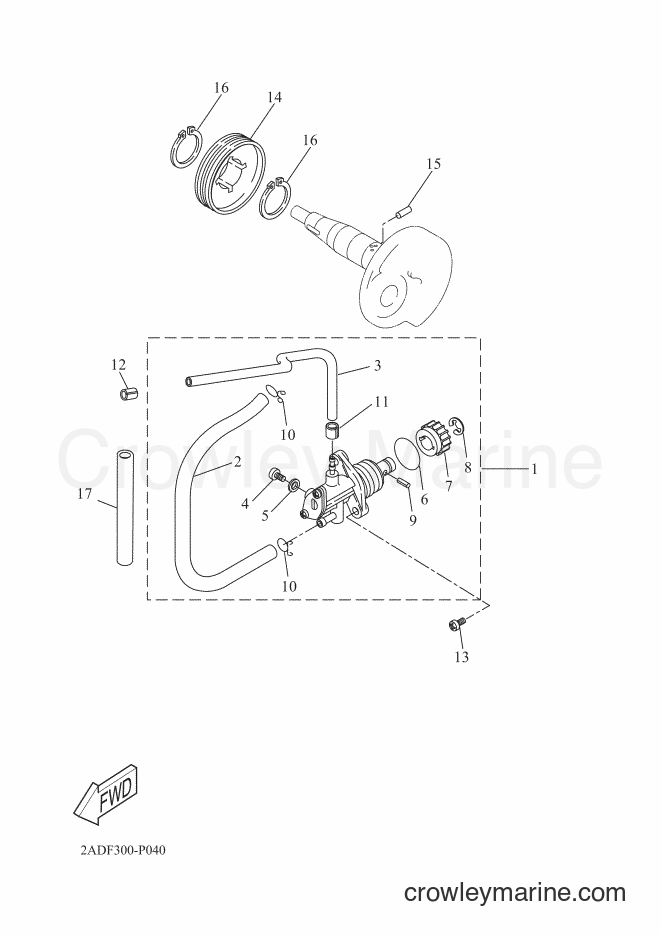

2015 Scooter CS50 - CS50 (2ADF) [060] OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50 (2ADF) [060] - OIL PUMP
Change View:
1
Required: 1
OIL PUMP ASSY
Price unavailable
2
Required: 1
. HOSE, OIL 1
Price unavailable
3
Required: 1
. HOSE, OIL 2
Price unavailable
4
Required: 1
. BOLT, BREATHER
Price unavailable
5
Required: 1
. GASKET, BREATHER BOLT
Price unavailable
6
Required: 1
. O-RING
Price unavailable
7
Required: 1
. GEAR, WORM WHEEL
Price unavailable
8
Required: 1
. CIRCLIP
Price unavailable
9
Required: 1
. PIN, DOWEL
Price unavailable
10
Required: 2
. CLIP
Price unavailable
11
Required: 1
. CLIP
Price unavailable
12
Required: 1
CLIP
Price unavailable
Pan Head Screw
13
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pump Drive Gear
14
Yamaha Motors
Pump Drive Gear3VL-E3178-00-00
Required: 1
GEAR, PUMP DRIVE
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Dowel Pin
15
Yamaha Motors
Dowel Pin93603-12827-00
Required: 1
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details
S -type Circlip
16
Yamaha Motors
S -type Circlip99009-19400-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
PROTECTOR, HOSE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
