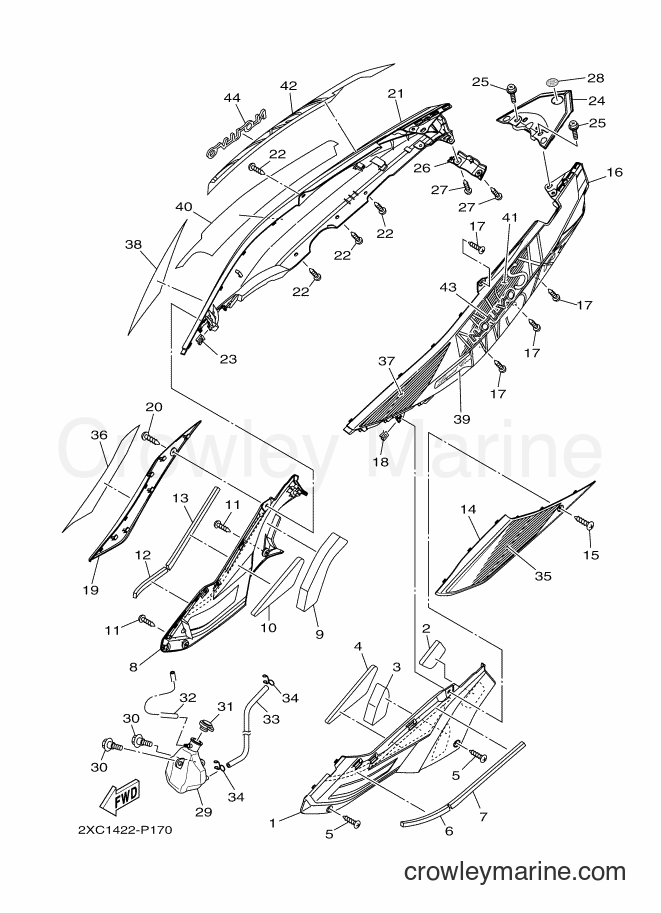

2015 Scooter AT125FC - AT125FC (2XC1) [010] SIDE COVER diagram
![Yamaha Motors AT125FC (2XC1) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/cGEvqbpJ.png)
1
Required: 1
LID, SIDE COVER
Price unavailable
2
Required: 1
DAMPER
Price unavailable
3
Required: 1
DAMPER, LOCATING 1
Price unavailable
4
Required: 1
DAMPER, LOCATING 2
Price unavailable
5
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
6
Required: 1
DAMPER, PLATE
Price unavailable
7
Required: 1
DAMPER, PLATE
Price unavailable
8
Required: 1
LID, SIDE COVER 2
Price unavailable
9
Required: 1
DAMPER, LOCATING 3
Price unavailable
10
Required: 1
DAMPER, LOCATING 4
Price unavailable
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
DAMPER, PLATE
Price unavailable
13
Required: 1
DAMPER, PLATE
Price unavailable
14
Required: 1
COVER, SIDE 1
Price unavailable
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
16
Required: 1
COVER, SIDE 3
Price unavailable
17
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
18
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
19
Required: 1
COVER, SIDE 2
Price unavailable
20
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
21
Required: 1
COVER, SIDE 4
Price unavailable
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
23
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
24
Required: 1
COVER, SIDE 5
Price unavailable
25
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
$8.92
You save $1.57
26
Required: 1
COVER, SIDE 6
Price unavailable
27
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
28
Required: 1
EMBLEM
Price unavailable
29
Required: 1
TANK, RECOVERY
Price unavailable
$1.70
You save $0.30
31
Required: 1
CAP
Price unavailable
32
Required: 1
PIPE 1
Price unavailable
33
Required: 1
PIPE 2
Price unavailable
$9.77
You save $1.72
35
Required: 1
GRAPHIC, 1
Price unavailable
36
Required: 1
GRAPHIC, 2
Price unavailable
37
Required: 1
GRAPHIC, 3
Price unavailable
38
Required: 1
GRAPHIC, 4
Price unavailable
39
Required: 1
GRAPHIC, 5
Price unavailable
40
Required: 1
GRAPHIC, 6
Price unavailable
41
Required: 1
GRAPHIC 7
Price unavailable
42
Required: 1
GRAPHIC 8
Price unavailable
43
Required: 1
EMBLEM 3D
Price unavailable
44
Required: 1
EMBLEM 3D
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
