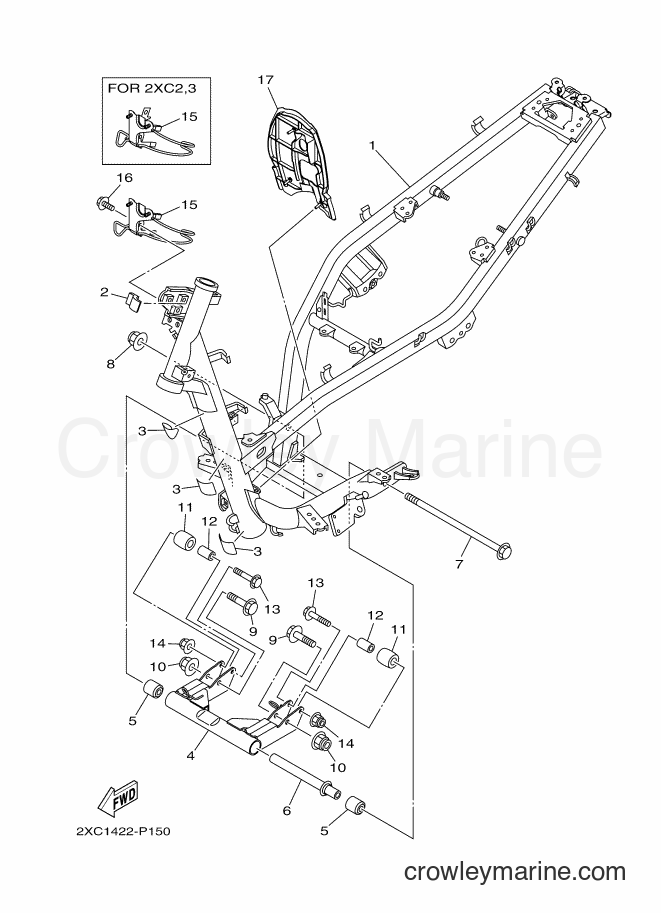

2015 Scooter AT125FC - AT125FC (2XC2) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (2XC2) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
DAMPER, PLATE
Price unavailable
3
Required: 3
SEAL
Price unavailable
4
Required: 1
ENGINE BRACKET COMP.
Price unavailable
5
Required: 2
BUSH 1
Price unavailable
6
Required: 1
SPACER
Price unavailable
7
Required: 1
SHAFT, PIVOT
Price unavailable
Self Locking Nut
8
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Flange Bolt
9
Yamaha Motors
Flange Bolt90105-10030-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self Locking Nut
10
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
11
Required: 2
STOPPER, MAIN STAND
Price unavailable
12
Required: 2
COLLAR
Price unavailable
13
Required: 2
BOLT, FLANGE
Price unavailable
Self Locking Nut
14
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
15
Required: 1
STAY 1
Price unavailable
15
Required: 1
STAY 1
Price unavailable
95817-06010-00
16
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
17
Required: 1
COVER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
