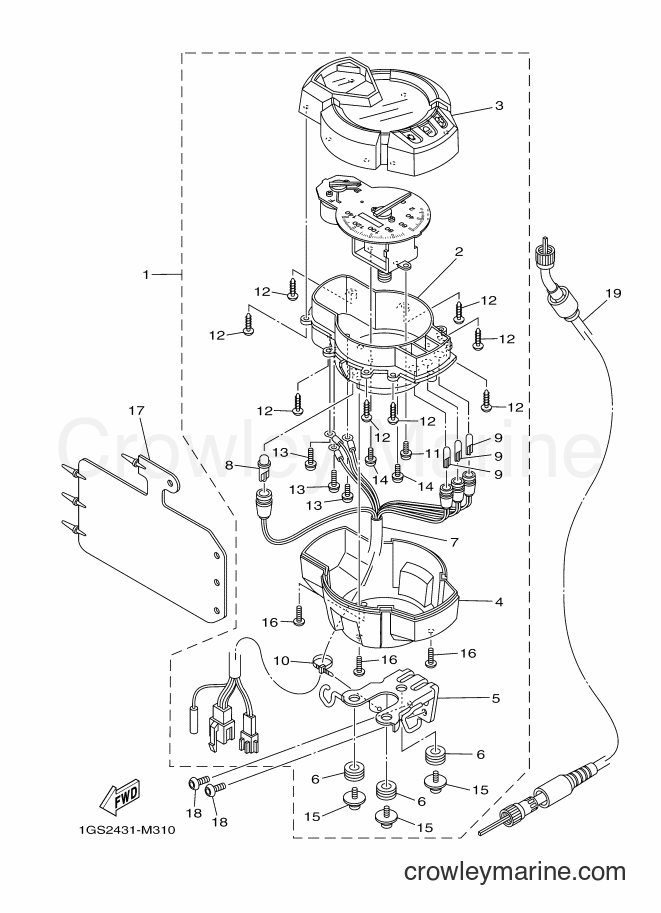

2015 Scooter AF115FX - AF115FX (2BU4) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115FX (2BU4) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. CASE COMP
Price unavailable
3
Required: 1
. CASE, METER UPPER
Price unavailable
4
Required: 1
. CASE, SPEEDOMETER LOWER
Price unavailable
5
Required: 1
. BRACKET, METER 2
Price unavailable
6
Required: 3
. DAMPER
Price unavailable
7
Required: 1
. SOCKET CORD ASSY
Price unavailable
8
Required: 1
. BULB, LED
Price unavailable
9
Required: 3
. BULB (T-6.5 12V-1.7W)
Price unavailable
10
Required: 1
. CLAMP
Price unavailable
Pan Head Screw w/ Washer
11
Yamaha Motors
Pan Head Screw w/ Washer97602-03110-00
Required: 1
. SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
Tapping Screw
12
Yamaha Motors
Tapping Screw97702-30014-00
Required: 8
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
Screw with Washer
13
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
14
Required: 2
. SCREW, PAN HEAD WITH WASHER
Price unavailable
15
Required: 3
. SCREW, SPECIAL
Price unavailable
16
Required: 3
. SCREW, TAPPING
Price unavailable
17
Required: 1
COVER, CONNECTER
Price unavailable
18
Required: 2
SCREW
Price unavailable
19
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
