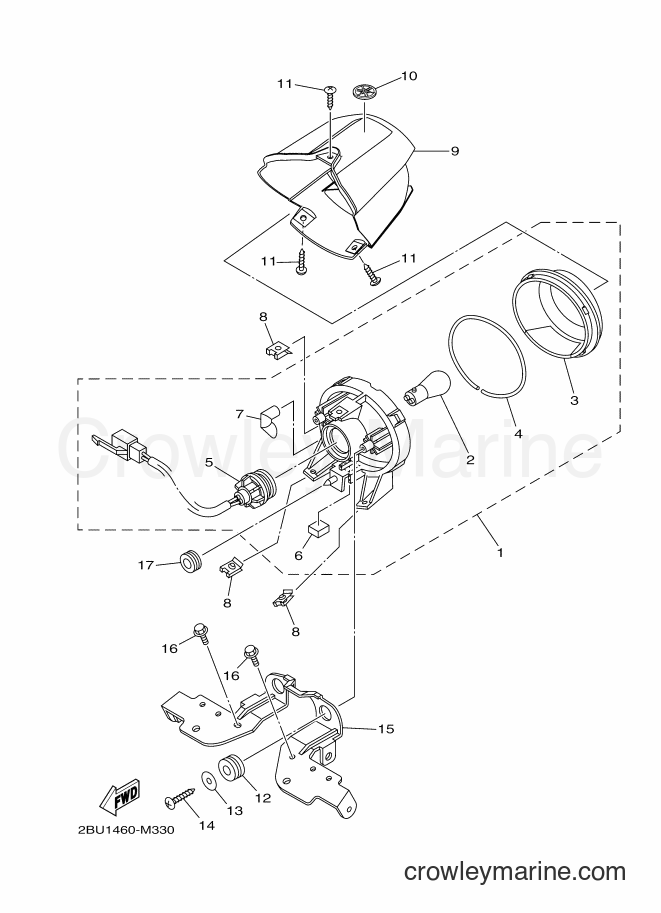

2015 Scooter AF115FX - AF115FX (2BU3) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115FX (2BU3) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V-21/5W)
Price unavailable
3
Required: 1
. LENS, TAILLIGHT
Price unavailable
4
Required: 1
. GASKET, TAIL LENS
Price unavailable
5
Required: 1
. SOCKET CORD ASSY
Price unavailable
6
Required: 1
. CUSHION
Price unavailable
7
Required: 1
. CAP
Price unavailable
9
Required: 1
COVER, TAILLIGHT
Price unavailable
10
Required: 1
EMBLEM
Price unavailable
Truss Screw
11
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
12
Required: 2
GROMMET
Price unavailable
Plain Washer
13
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Truss Screw
14
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
15
Required: 1
BRACKET, TAILLIGHT
Price unavailable
95817-06010-00
16
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
17
Required: 1
GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
