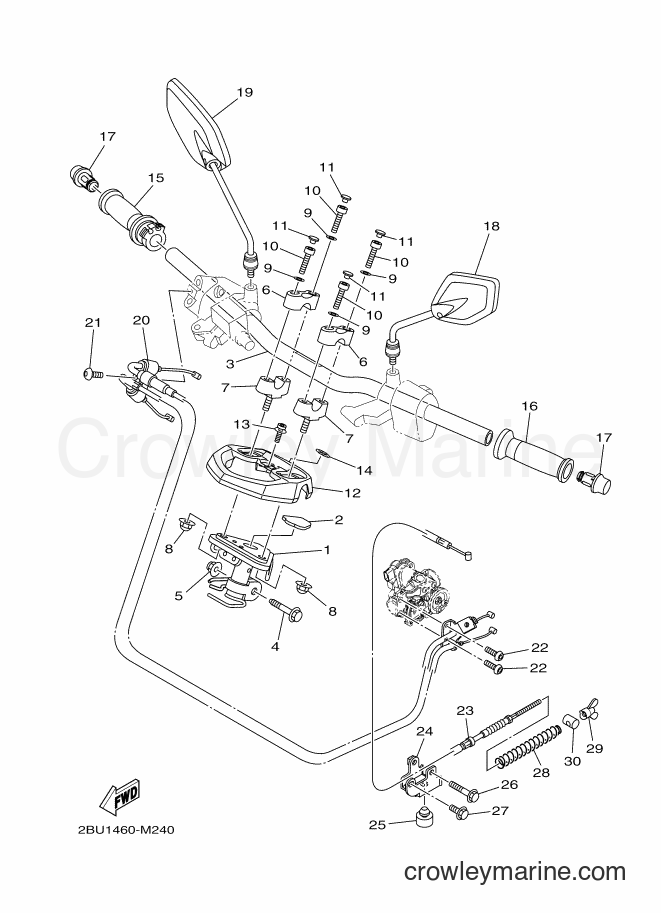

2015 Scooter AF115FX - AF115FX (2BU3) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115FX (2BU3) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
BRACKET, HANDLE
Price unavailable
2
Required: 1
DAMPER
Price unavailable
3
Required: 1
BAR, HANDLE
Price unavailable
4
Required: 1
BOLT, FLANGE
Price unavailable
SELF-LOCKING NUT
5
Yamaha Motors
SELF-LOCKING NUT90185-10011-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
6
Required: 2
HOLDER, HANDLE UPPER
Price unavailable
7
Required: 2
HOLDER, HANDLE LOWER
Price unavailable
8
Required: 2
NUT, SELF-LOCKING
Price unavailable
Plain Washer
9
Yamaha Motors
Plain Washer90201-08823-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
Socket Bolt
10
Yamaha Motors
Socket Bolt91317-08025-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 4
PLUG (0033,YB)
Price unavailable
12
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
Screw With Washer
13
Yamaha Motors
Screw With Washer90159-05032-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details
14
Required: 1
EMBLEM
Price unavailable
15
Required: 1
GRIP ASSY
Price unavailable
16
Required: 1
GRIP
Price unavailable
17
Required: 2
END, GRIP
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
20
Required: 1
THROTTLE CABLE ASSY
Price unavailable
Button head bolt
21
Yamaha Motors
Button head bolt92012-05016-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Button head bolt
22
Yamaha Motors
Button head bolt92012-05010-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
CABLE, BRAKE
Price unavailable
24
Required: 1
HOLDER, WIRE
Price unavailable
25
Required: 1
STOPPER, MAIN STAND
Price unavailable
Flange Bolt
26
Yamaha Motors
Flange Bolt95022-06040-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
Flange Bolt
27
Yamaha Motors
Flange Bolt95022-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
28
Required: 1
SPRING, COMPRESSION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
