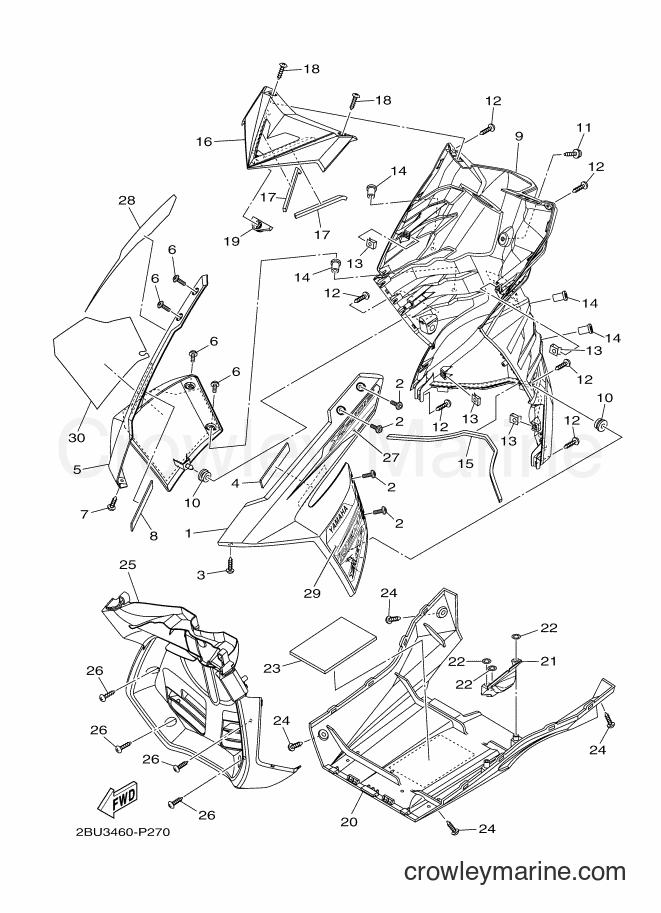

2015 Scooter AF115FX - AF115FX (2BU3) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115FX (2BU3) [010] - LEG SHIELD
Change View:
1
Required: 1
PANEL 1
Price unavailable
2
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
Tapping Screw
3
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
4
Required: 1
SEAL 1
Price unavailable
5
Required: 1
PANEL 2
Price unavailable
6
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
Tapping Screw
7
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
8
Required: 1
SEAL 1
Price unavailable
9
Required: 1
LEG SHIELD 2
Price unavailable
10
Required: 2
GROMMET
Price unavailable
11
Required: 1
SCREW, WITH WASHER
Price unavailable
Tapping Screw
12
Yamaha Motors
Tapping Screw97702-50016-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
SPECIAL SHAPE NUT
14
Yamaha Motors
SPECIAL SHAPE NUT90179-05523-00
Required: 4
NUT
Supersedes: 90179-05849-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
15
Required: 1
DAMPER, PLATE
Price unavailable
16
Required: 1
COVER
Price unavailable
17
Required: 2
DAMPER, PLATE
Price unavailable
Tapping Screw
18
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
19
Required: 1
GROMMET
Price unavailable
20
Required: 1
COVER, UNDER
Price unavailable
21
Required: 1
COVER, UNDER 2
Price unavailable
Spring Nut
22
Yamaha Motors
Spring Nut90183-06008-00
Required: 3
NUT, SPRING
Supersedes: 90183-06815-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
DAMPER, PLATE
Price unavailable
25
Required: 1
FENDER, INNER
Price unavailable
Tapping Screw
26
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
27
Required: 1
GRAPHIC 1
Price unavailable
28
Required: 1
GRAPHIC 2
Price unavailable
29
Required: 1
GRAPHIC 3
Price unavailable
30
Required: 1
GRAPHIC 4
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
