2015 Scooter AF115FX - AF115FX (2BU3) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

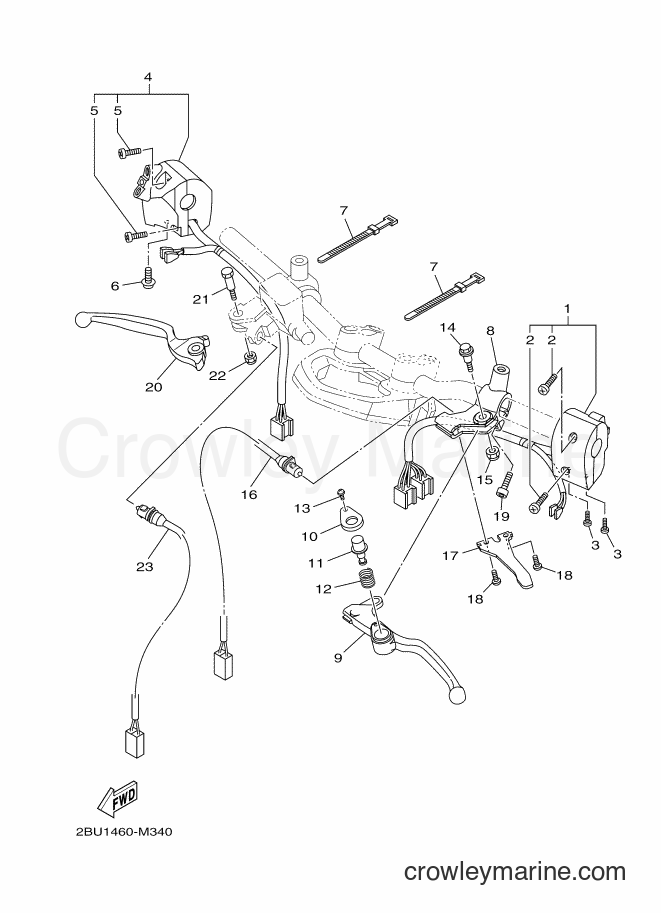

Yamaha Motors AF115FX (2BU3) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
Pan Head Screw
2
Yamaha Motors
Pan Head Screw98517-05030-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98507-05030-00
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Binding Screw
3
Yamaha Motors
Binding Screw98907-03008-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$0.55
$0.47
You save $0.08
More details
4
Required: 1
SWITCH, HANDLE 1
Price unavailable
Pan Head Screw
5
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PAN HEAD SCREW
6
Yamaha Motors
PAN HEAD SCREW97607-06214-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
7
Required: 2
BAND, SWITCH CORD
Price unavailable
8
Required: 1
HOLDER, LEVER 1
Price unavailable
9
Required: 1
LEVER 1
Price unavailable
10
Required: 1
COVER
Price unavailable
11
Required: 1
PIN, LOCK 1
Price unavailable
12
Required: 1
SPRING
Price unavailable
13
Required: 1
SCREW, LEVER FITTING
Price unavailable
14
Required: 1
BOLT
Price unavailable
NUT
15
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
16
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
17
Required: 1
DAMPER, STOPPER
Price unavailable
Bolt
19
Yamaha Motors
Bolt91317-06020-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
20
Required: 1
LEVER 2
Price unavailable
BOLT
21
Yamaha Motors
BOLT90109-06577-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
NUT
22
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
23
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
