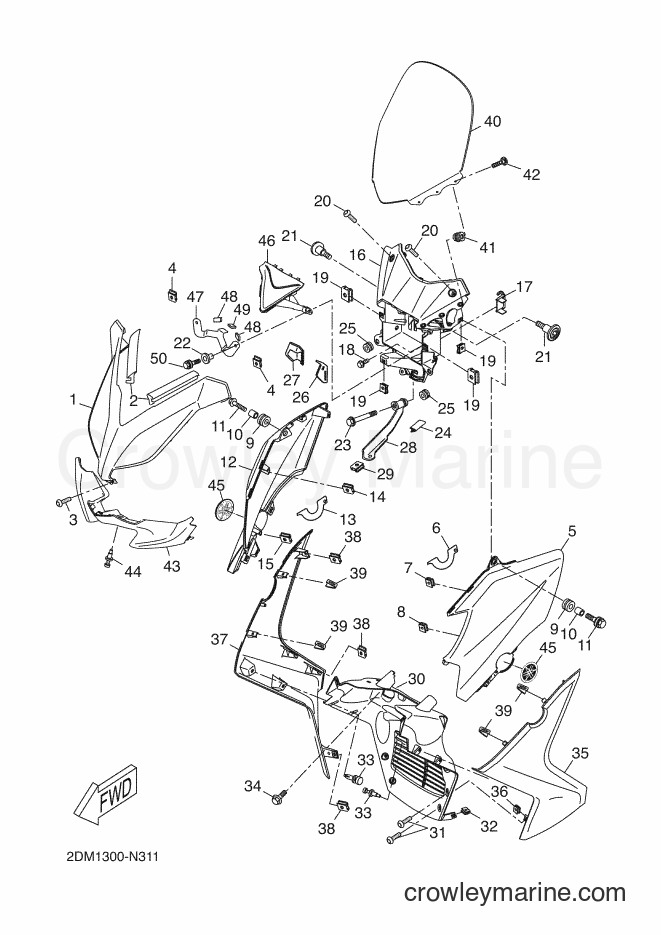

2014 Scooter YP125RA - YP125RA (2DM2) [050] WINDSHIELD diagram
![Yamaha Motors YP125RA (2DM2) [050] - WINDSHIELD](https://cdn.crowleymarine.com/yamaha/YXrWgHI4.png)
1
Required: 1
PANEL, INNER 1
Price unavailable
2
Required: 2
SEAL
Price unavailable
3
Required: 1
SCREW, TAPPING
Price unavailable
In stock
Only 1 remaining
$0.85
You save $0.15
5
Required: 1
BODY, FRONT UPPER 1
Price unavailable
6
Required: 1
TAPE 2
Price unavailable
7
Required: 1
NUT, SPRING
Price unavailable
In stock
Only 1 remaining
$0.85
You save $0.15
$7.22
You save $1.27
10
Required: 2
COLLAR
Price unavailable
11
Required: 2
BOLT, WITH WASHER
Price unavailable
12
Required: 1
BODY, FRONT UPPER 2
Price unavailable
13
Required: 1
TAPE 3
Price unavailable
14
Required: 1
NUT, SPRING
Price unavailable
In stock
Only 1 remaining
$0.85
You save $0.15
16
Required: 1
STAY 1
Price unavailable
17
Required: 1
STAY, RELAY
Price unavailable
18
Required: 5
BOLT, WITH WASHER
Price unavailable
$5.09
You save $0.90
20
Required: 2
SCREW, TAPPING
Price unavailable
21
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 2
BOLT, FLANGE
Supersedes: 95812-08025-00
$8.07
You save $1.42
22
Required: 2
COLLAR
Price unavailable
23
Yamaha Motors
Flange Bolt95817-08055-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-08055-00
$3.58
You save $0.63
24
Required: 1
MOLE
Price unavailable
$7.22
You save $1.27
26
Required: 1
DAMPER, LOCATING 3
Price unavailable
27
Required: 1
DAMPER, LOCATING 4
Price unavailable
28
Required: 1
STAY, HEAD LIGHT 1
Price unavailable
$4.67
You save $0.82
30
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
31
Required: 4
SCREW, TAPPING
Price unavailable
In stock
Only 1 remaining
$0.85
You save $0.15
$5.52
You save $0.97
34
Required: 2
BOLT
Price unavailable
35
Required: 1
BODY, FRONT UNDER 1
Price unavailable
In stock
Only 1 remaining
$0.85
You save $0.15
37
Required: 1
BODY, FRONT UNDER 2
Price unavailable
In stock
Only 1 remaining
$0.85
You save $0.15
$7.22
You save $1.27
40
Required: 1
SCREEN
Price unavailable
$6.37
You save $1.12
42
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 6
SCREW, ROUND HEAD
$2.85
You save $0.50
43
Required: 1
COVER
Price unavailable
$5.52
You save $0.97
45
Required: 2
EMBLEM
Price unavailable
46
Required: 1
COVER, BATTERY
Price unavailable
47
Required: 1
BRACKET, BATTERY
Price unavailable
48
Required: 2
DAMPER, PLATE
Price unavailable
49
Required: 1
DAMPER, PLATE
Price unavailable
50
Required: 2
BOLT, WITH WASHER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
