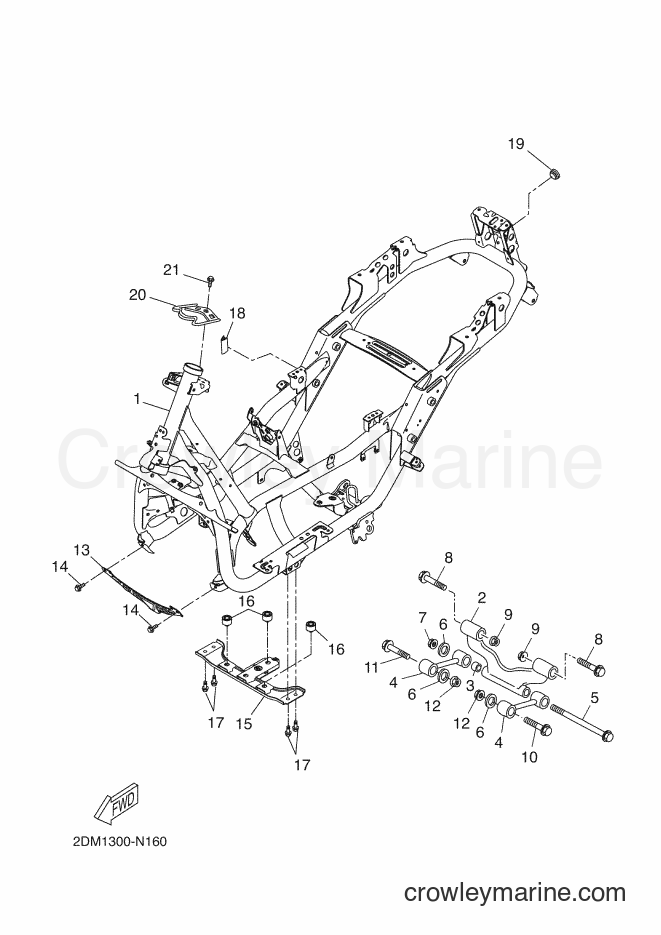

2014 Scooter YP125RA - YP125RA (2DM2) [040] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125RA (2DM2) [040] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP. 2
Price unavailable
3
Required: 1
COLLAR
Price unavailable
4
Required: 2
STAY, ENGINE
Price unavailable
Washer Based Bolt
5
Yamaha Motors
Washer Based Bolt90105-10056-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
Plate Washer
6
Yamaha Motors
Plate Washer90201-105A2-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self-Locking Nut
7
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 2
BOLT, FLANGE
Price unavailable
Self-Locking Nut
9
Yamaha Motors
Self-Locking Nut90185-12072-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Flange Bolt
10
Yamaha Motors
Flange Bolt90105-10123-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Flange Bolt
11
Yamaha Motors
Flange Bolt90105-10361-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Self-Locking Nut
12
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
BRACKET, RADIATOR 3
Price unavailable
14
Required: 2
BOLT, FLANGE
Price unavailable
15
Required: 1
BRACKT, TANK FITTING
Price unavailable
16
Required: 3
PAD, SEAT
Price unavailable
17
Required: 4
BOLT, FLANGE
Price unavailable
18
Required: 1
MOLE
Price unavailable
Plug
19
Yamaha Motors
Plug90338-09130-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
20
Required: 1
GUIDE, WIRE 2
Price unavailable
Flange Bolt
21
Yamaha Motors
Flange Bolt95817-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-06X00-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
