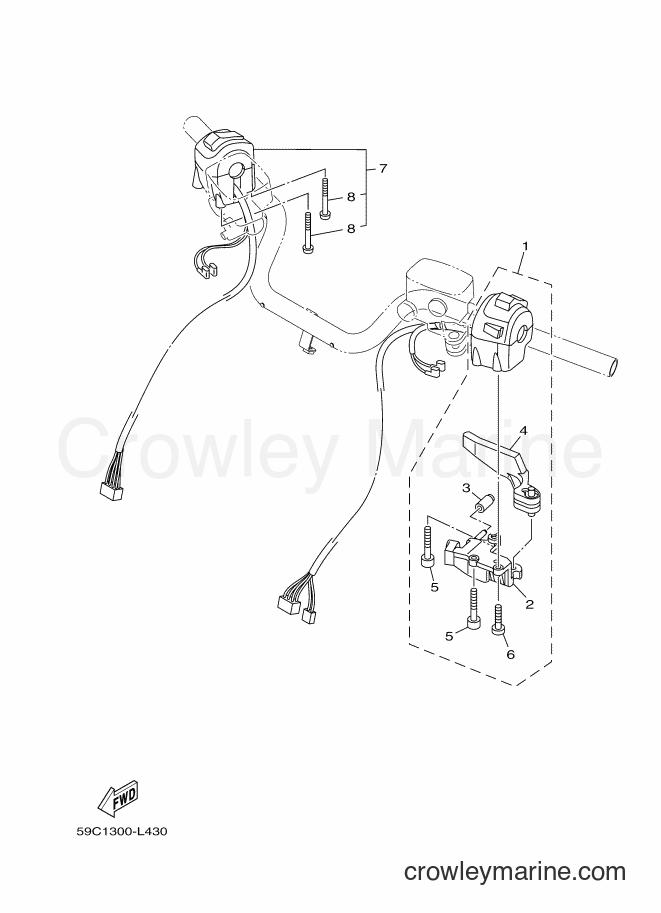

2014 Scooter XP500A - XP500A (59CT) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500A (59CT) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 4
Price unavailable
Adjusting Holder
2
Yamaha Motors
Adjusting Holder5RB-26396-01-00
Required: 1
. HOLDER, ADJUSTING
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
Blind Plug
3
Yamaha Motors
Blind Plug5RB-13569-00-00
Required: 1
. PLUG, BLIND
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Lever Lock Assembly
4
Yamaha Motors
Lever Lock Assembly5VU-83930-00-00
Required: 1
. LEVER LOCK ASSY
Cross Ship
Leaves in 2-5 days
$50.99
$43.34
You save $7.65
More details
Socket Bolt
5
Yamaha Motors
Socket Bolt91317-05055-00
Required: 2
. BOLT
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98507-05012-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
7
Required: 1
SWITCH, HANDLE 3
Price unavailable
Pan Screw
8
Yamaha Motors
Pan Screw98507-05050-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
