2014 Scooter XC125R - XC125R (2PE1) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

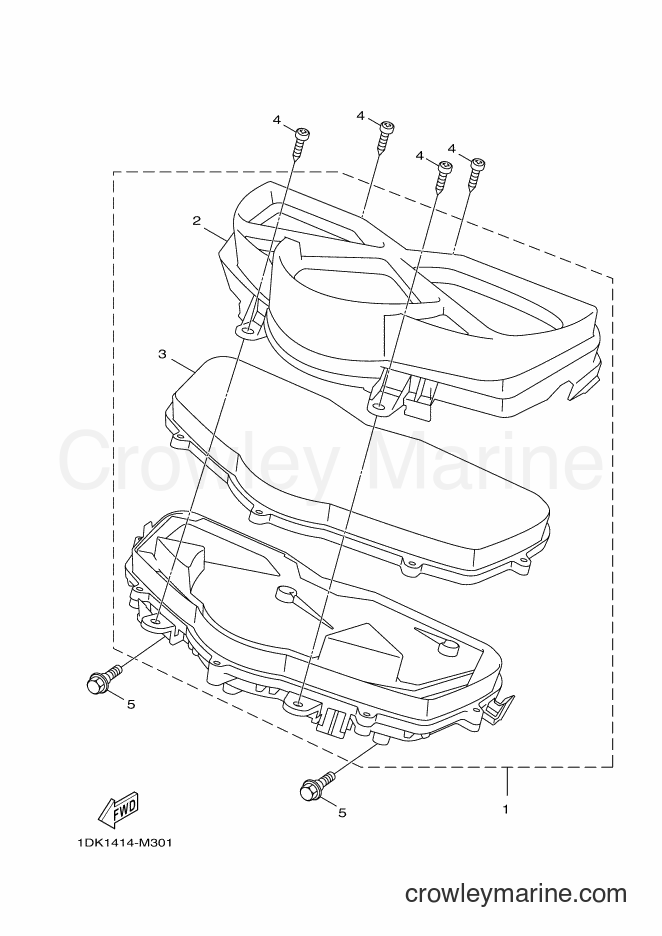

Yamaha Motors XC125R (2PE1) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. CASE, METER UPPER
Price unavailable
GLASS PLATE
3
Yamaha Motors
GLASS PLATE1DK-H353K-00-00
Required: 1
. GLASS PLATE
Cross Ship
Leaves in 2-5 days
$43.99
$37.39
You save $6.60
More details
BOLT
5
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
