2014 Scooter XC125R - XC125R (2PE1) [010] FRAME diagram
1
Required: 1
FRAME COMP.
Price unavailable
$10.62
You save $1.87

3
Yamaha Motors
ENGINE MOUNTING BOLT52S-F1481-00-00
Required: 1
BOLT, ENGINE MOUNTING 1
$13.17
You save $2.32

4
Yamaha Motors
95601-14200-0095602-14200-00
Required: 1
NUT, SELF-LOCKING
$10.62
You save $1.87
$16.57
You save $2.92
$0.84
You save $0.15
7
Required: 1
DUCT 2
Price unavailable
$1.44
You save $0.26
In stock
Only 1 remaining
$2.21
You save $0.39
$82.44
You save $14.55
$0.38
You save $0.07

12
Yamaha Motors
Plate Damper90520-02828-00
Required: 1
. DAMPER, PLATE
$0.38
You save $0.07

13
Yamaha Motors
Flange Bolt95817-08014-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08014-00
$2.13
You save $0.38

14
Yamaha Motors
Upper Front Bracket1DK-F1415-00-00
Required: 1
BRACKET, FRONT UPPER 1
$5.94
You save $1.05

15
Yamaha Motors
Flange Bolt95817-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$4.67
You save $0.82
$11.47
You save $2.02

17
Yamaha Motors
Flange Bolt95817-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$4.67
You save $0.82

18
Yamaha Motors
Fuel Tank Stay 11DK-F4115-01-00
Required: 1
STAY, FUEL TANK 1
$8.07
You save $1.42

19
Yamaha Motors
Flange Bolt95817-06055-00
Required: 1
BOLT, FLANGE
Supersedes: 95822-06055-00
$2.00
You save $0.35
$0.38
You save $0.07
$1.49
You save $0.26
$0.68
You save $0.12
$0.21
You save $0.04
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

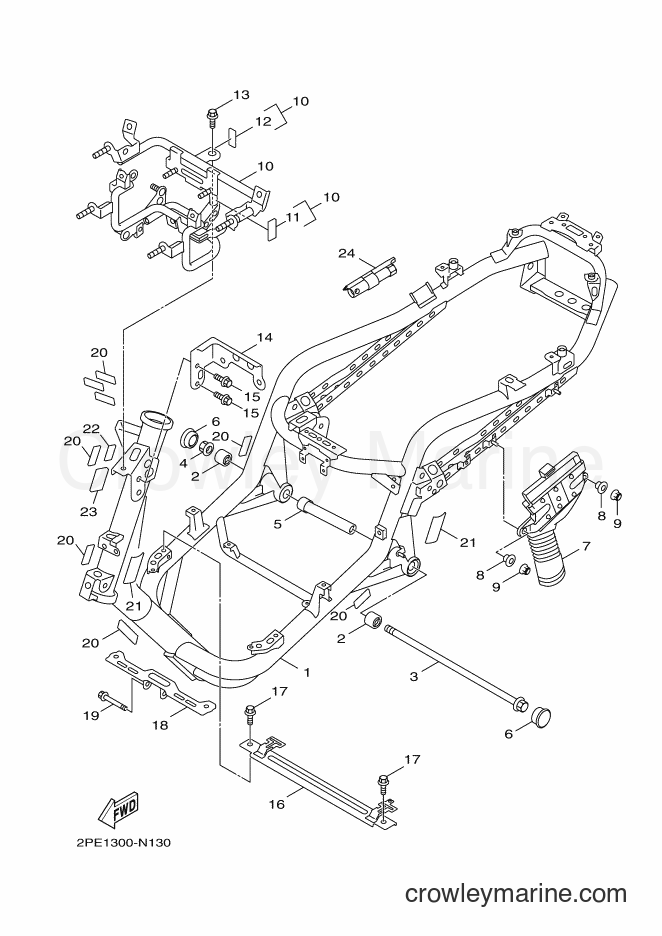

![Yamaha Motors XC125R (2PE1) [010] - FRAME](https://cdn.crowleymarine.com/yamaha/UAxTceP1.png)
