2014 Scooter XC125E - XC125E (4P7A) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

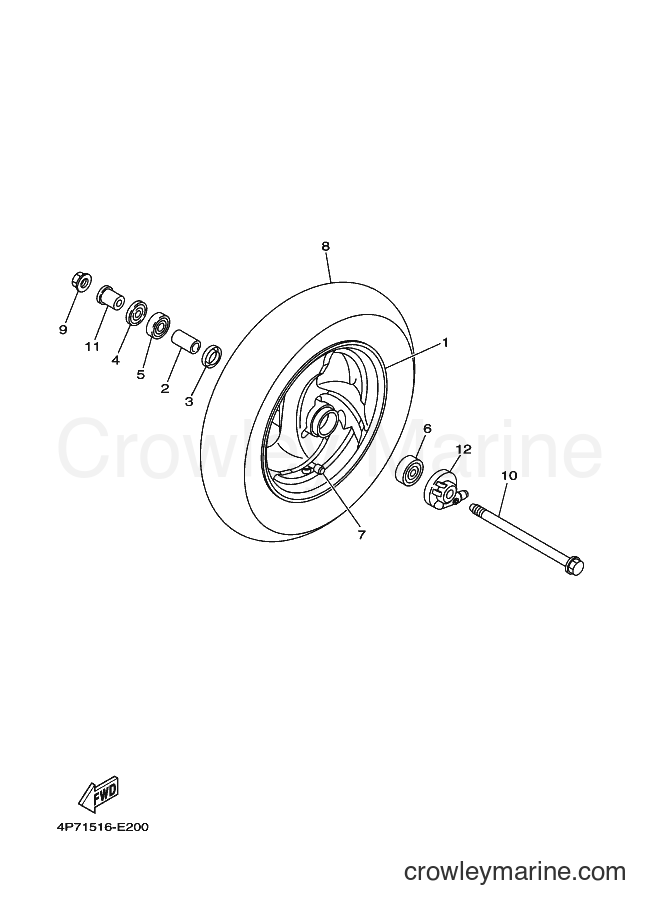

Yamaha Motors XC125E (4P7A) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
COLLAR
Price unavailable
3
Required: 1
FLANGE, SPACER
Price unavailable
Oil Seal
4
Yamaha Motors
Oil Seal93102-17853-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$0.90
$0.76
You save $0.14
More details
5
Required: 1
BEARING
Price unavailable
6
Required: 1
BEARING
Price unavailable
7
Required: 1
VALVE, RIM
Price unavailable
8
Required: 1
TIRE (100/90-10 C-922 56J TL)
Price unavailable
SELF-LOCKING NUT
9
Yamaha Motors
SELF-LOCKING NUT95602-12200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
10
Required: 1
AXLE, WHEEL
Price unavailable
COLLAR
11
Yamaha Motors
COLLAR90387-12852-00
Required: 1
COLLAR
Supersedes: 90387-125J1-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
12
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
