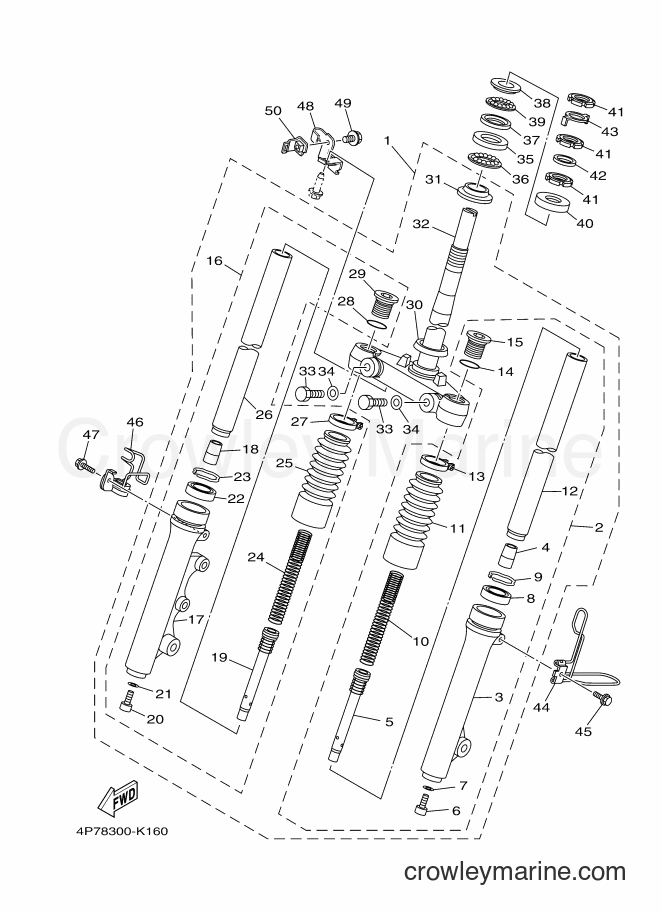

2014 Scooter XC125E - XC125E (4P7A) [010] FRONT FORK diagram
![Yamaha Motors XC125E (4P7A) [010] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/r98wjOeJ.png)
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. FRONT FORK ASSY (L.H)
Price unavailable
3
Required: 1
. . TUBE, OUTER (L.H)
Price unavailable
4
Required: 1
. . SPINDLE, TAPER
Price unavailable
5
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
6
Required: 1
. . BOLT 2
Price unavailable
7
Required: 1
. . GASKET
Price unavailable
8
Yamaha Motors
Oil Seal4GU-F3145-00-00
Required: 1
. . OIL SEAL
$18.69
You save $3.30
9
Yamaha Motors
Snap Ring5AP-F3153-00-00
Required: 1
. . RING, SNAP
$3.19
You save $0.56
10
Required: 1
. . SPRING, FRONT FORK
Price unavailable
11
Required: 1
. . BOOT
Price unavailable
12
Required: 1
. . INNER TUBE COMP.1
Price unavailable
13
Required: 1
. . BAND
Price unavailable
14
Required: 1
. . O-RING
Price unavailable
15
Required: 1
. . BOLT, CAP
Price unavailable
16
Required: 1
. FRONT FORK ASSY (R.H)
Price unavailable
17
Required: 1
. . TUBE, OUTER
Price unavailable
18
Required: 1
. . SPINDLE, TAPER
Price unavailable
19
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
20
Required: 1
. . BOLT 2
Price unavailable
21
Required: 1
. . GASKET
Price unavailable
$18.69
You save $3.30
23
Yamaha Motors
Snap Ring5AP-F3153-00-00
Required: 1
. . RING, SNAP
$3.19
You save $0.56
24
Required: 1
. . SPRING, FRONT FORK
Price unavailable
25
Required: 1
. . BOOT
Price unavailable
26
Required: 1
. . INNER TUBE COMP.1
Price unavailable
27
Required: 1
. . BAND
Price unavailable
28
Required: 1
. . O-RING
Price unavailable
29
Required: 1
. . BOLT, CAP
Price unavailable
$7.64
You save $1.35
31
Yamaha Motors
BALL RACE4FP-F3411-10-00
Required: 1
. RACE, BALL 1
$22.94
You save $4.05
32
Required: 1
. UNDER BRACKET COMP.
Price unavailable
33
Required: 2
. BOLT 1
Price unavailable
34
Required: 2
. WASHER, PLAIN
Price unavailable
35
Required: 1
RACE, BALL 2
Price unavailable
36
Required: 1
RETAINER, BALL BEARING
Price unavailable
37
Required: 1
RACE, BALL 2
Price unavailable
38
Required: 1
RACE, BALL 1
Price unavailable
39
Required: 1
RETAINER, BALL BEARING
Price unavailable
40
Required: 1
COVER, BALL RACE 2
Price unavailable
$8.92
You save $1.57
42
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57
43
Required: 1
WASHER, SPECIAL
Price unavailable
44
Required: 1
HOLDER, CABLE
Price unavailable
45
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
$2.72
You save $0.48
46
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
47
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06012-00
In stock
5+ in stock
$1.66
You save $0.29
48
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
49
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06012-00
In stock
5+ in stock
$1.66
You save $0.29
50
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
