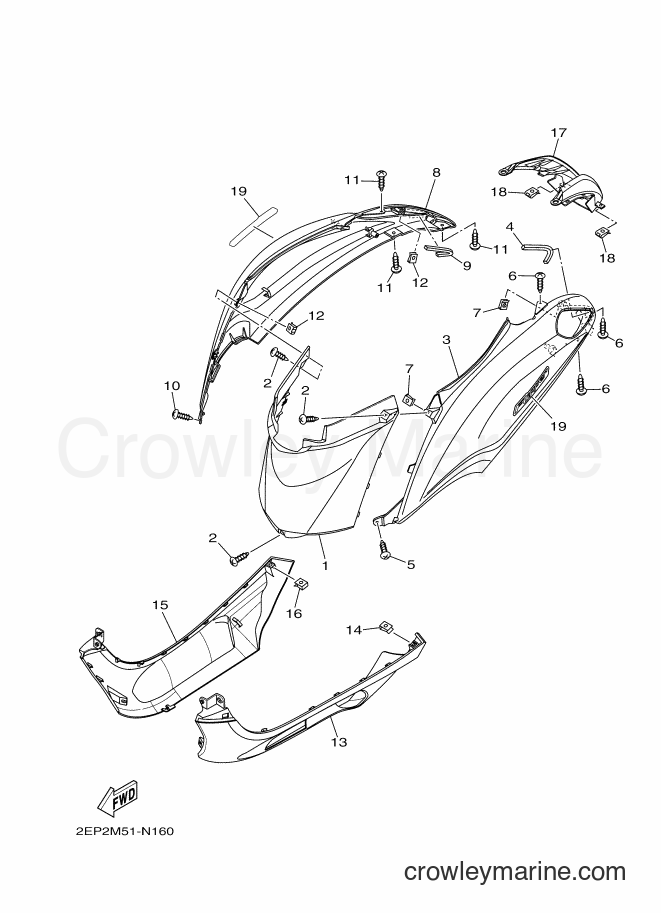

2014 Scooter XC115S - XC115S (2EP2) [020] SIDE COVER diagram
![Yamaha Motors XC115S (2EP2) [020] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/SSIuljkJ.png)
1
Required: 1
COVER, SIDE 1
Price unavailable
2
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
3
Required: 1
COVER, SIDE 2
Price unavailable
4
Required: 1
DAMPER, PLATE
Price unavailable
5
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
6
Required: 3
SCREW, ROUND TAPPING
Price unavailable
-50%
7
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
8
Required: 1
COVER, SIDE 3
Price unavailable
9
Required: 1
DAMPER, PLATE
Price unavailable
10
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
11
Required: 3
SCREW, ROUND TAPPING
Price unavailable
-50%
12
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
13
Required: 1
MOLE, SIDE COVER 1(0903,SMX)
Price unavailable
-50%
14
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
15
Required: 1
MOLE,SIDE COVER 2
Price unavailable
-50%
16
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
17
Required: 1
RIM, TAILLIGHT
Price unavailable
-50%
18
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
19
Required: 2
EMBLEM
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
