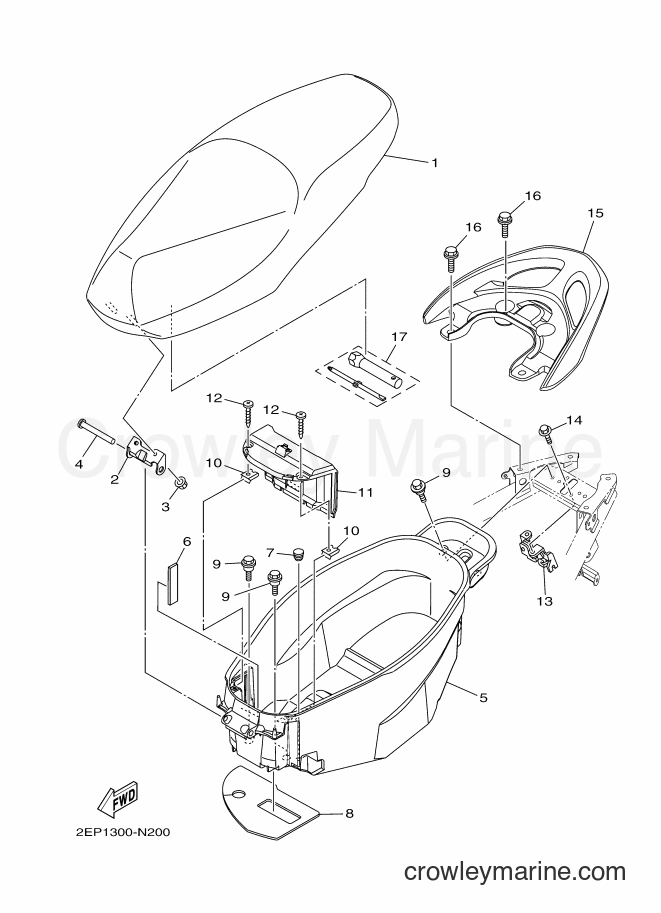

2014 Scooter XC115S - XC115S (2EP2) [020] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (2EP2) [020] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
HINGE, SEAT
Price unavailable
Flange Nut
3
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
PIN(4CU)
4
Yamaha Motors
PIN(4CU)90241-10017-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
5
Required: 1
BOX 1
Price unavailable
6
Required: 1
DAMPER, PLATE
Price unavailable
7
Required: 1
PLUG, BLIND
Price unavailable
8
Required: 1
DAMPER, SEAT
Price unavailable
BOLT
9
Yamaha Motors
BOLT90109-063F1-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
11
Required: 1
COVER, BATTERY
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
13
Required: 1
SEAT LOCK ASSY
Price unavailable
15
Required: 1
HANDLE, SEAT
Price unavailable
16
Required: 4
BOLT, WITH WASHER
Price unavailable
17
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
