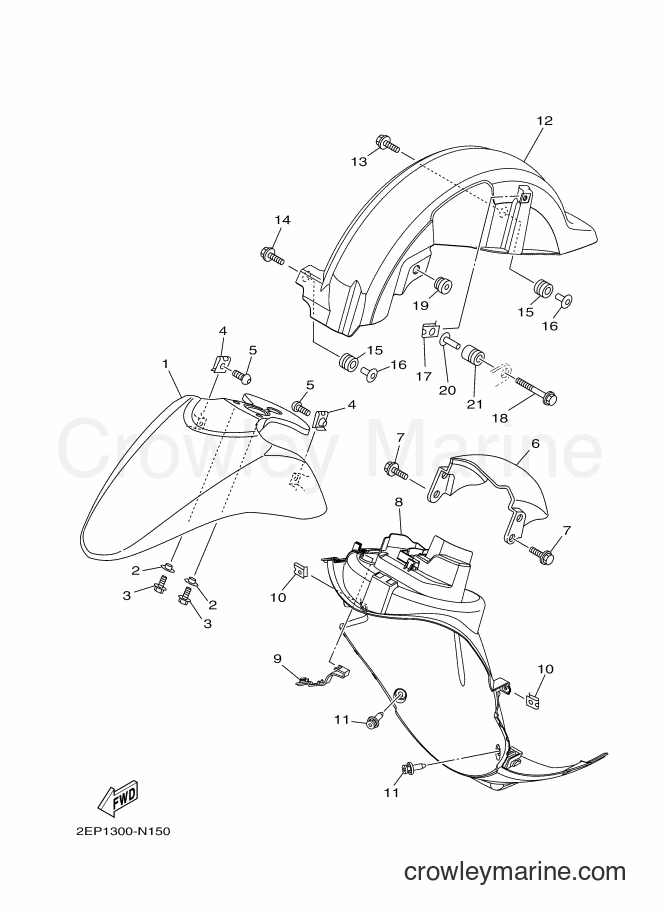

2014 Scooter XC115S - XC115S (2EP2) [020] FENDER diagram
![Yamaha Motors XC115S (2EP2) [020] - FENDER](https://cdn.crowleymarine.com/yamaha/zbwRFJb3.png)
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 2
COLLAR
Price unavailable
3
Yamaha Motors
Flange Bolt95817-06014-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42
4
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 2
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
5
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 2
BOLT, BUTTON HEAD
$2.25
You save $0.40
6
Required: 1
FENDER, FRONT 2
Price unavailable
7
Yamaha Motors
Flange Bolt95817-06014-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42
8
Required: 1
FENDER, INNER
Price unavailable
9
Required: 1
PLATE 1
Price unavailable
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$1.10
You save $0.20
12
Required: 1
FENDER, REAR
Price unavailable
13
Yamaha Motors
Bolt With Washer90119-06096-00
Required: 1
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.65
You save $0.65
14
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
15
Required: 2
GROMMET
Price unavailable
16
Required: 2
COLLAR
Price unavailable
17
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 1
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
18
Required: 1
BOLT, WITH WASHER
Price unavailable
19
Required: 1
GROMMET
Price unavailable
20
Required: 1
COLLAR
Price unavailable
21
Required: 1
GROMMET
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
