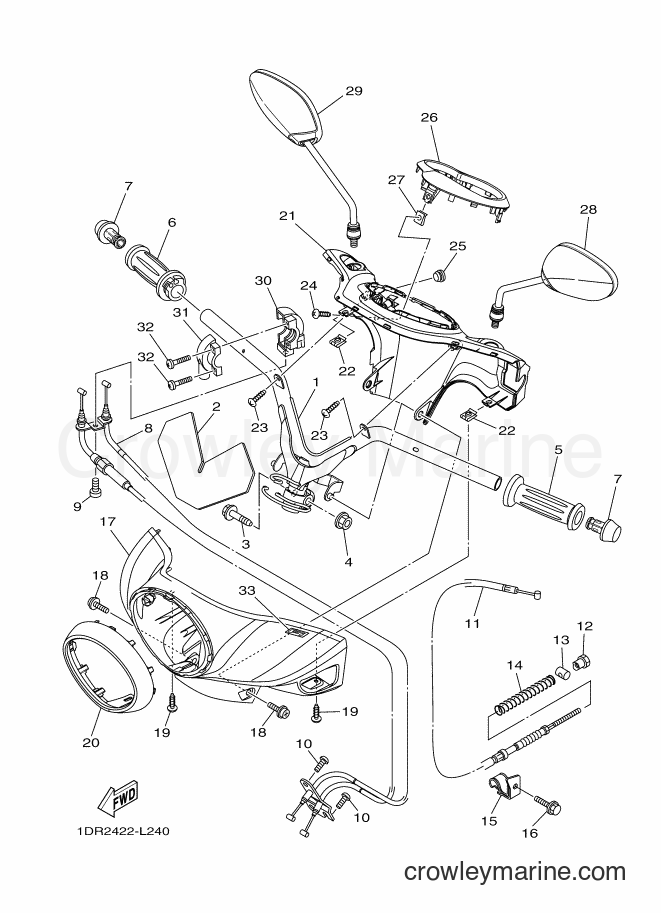

2014 Scooter XC115S - XC115S (1DR5) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1DR5) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
2
Required: 1
DAMPER
Price unavailable
Flange Bolt
3
Yamaha Motors
Flange Bolt90105-10295-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
4
Required: 1
NUT, SELF-LOCKING
Price unavailable
5
Required: 1
GRIP
Price unavailable
6
Required: 1
GRIP ASSY
Price unavailable
7
Required: 2
END, GRIP (CROME)
Price unavailable
8
Required: 1
THROTTLE CABLE ASSY
Price unavailable
SCREW (4JY)
9
Yamaha Motors
SCREW (4JY)92017-06010-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Button head bolt
10
Yamaha Motors
Button head bolt92012-05012-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
11
Required: 1
CABLE, BRAKE
Price unavailable
Special Shape Nut
12
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 1
SPRING, COMPRESSION
Price unavailable
15
Required: 1
HOLDER 2
Price unavailable
95821-06014-00
16
Yamaha Motors
95821-06014-0095802-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.40
$0.67
You save $-0.27
More details
17
Required: 1
COVER, HANDLE UPPER 1
Price unavailable
18
Required: 2
SCREW, WITH WASHER
Price unavailable
Truss Screw
19
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
20
Required: 1
RIM, HEADLIGHT
Price unavailable
21
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
22
Required: 2
NUT, SPRING
Price unavailable
Truss Screw
24
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
25
Required: 1
PLUG, BLIND
Price unavailable
26
Required: 1
COVER, METER
Price unavailable
27
Required: 1
NUT, SPRING
Price unavailable
28
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
29
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
30
Required: 1
CAP, GRIP UPPER
Price unavailable
31
Required: 1
CAP, GRIP UNDER
Price unavailable
Pan Head Screw
32
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$3.15
You save $-1.40
More details
33
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
