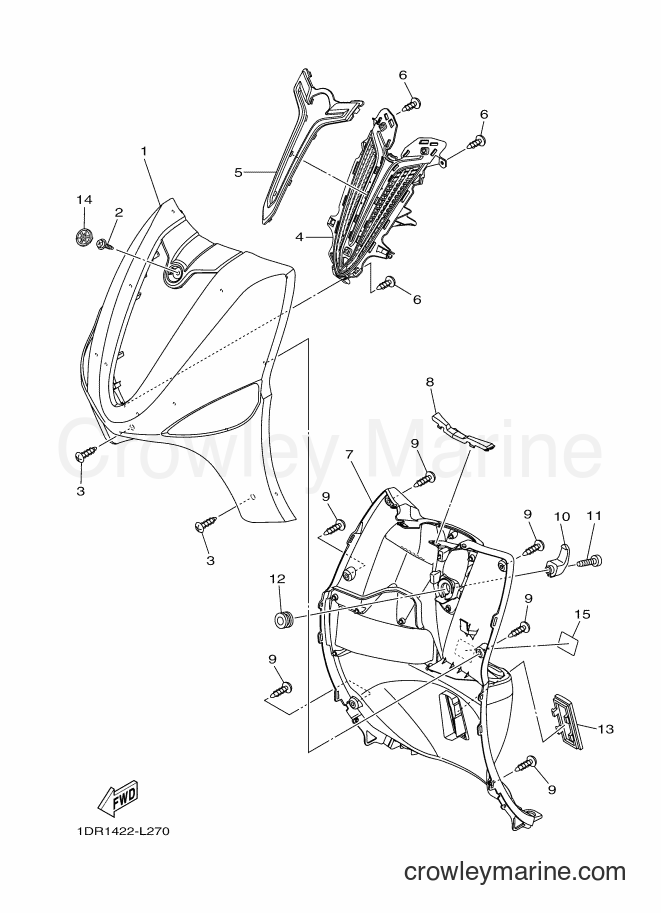

2014 Scooter XC115S - XC115S (1DR5) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1DR5) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
SCREW, WITH WASHER
Price unavailable
4
Required: 1
GRILLE, FRONT
Price unavailable
5
Required: 1
PANEL 1
Price unavailable
Truss Screw
6
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
LEG SHIELD ASSY
Price unavailable
8
Required: 1
COVER 2
Price unavailable
10
Required: 1
HOOK 1
Price unavailable
Bind Screw
11
Yamaha Motors
Bind Screw98907-06025-00
Required: 1
SCREW, BIND
Supersedes: 98902-06025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
GROMMET
Price unavailable
13
Required: 1
CAP
Price unavailable
14
Required: 1
CAP 2
Price unavailable
15
Required: 1
LABEL, WARNING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
