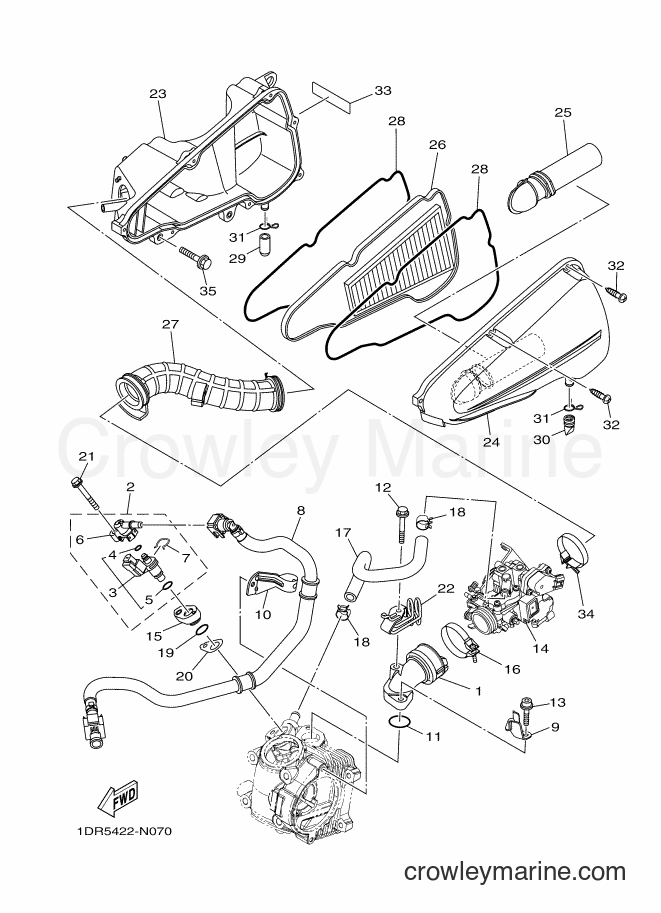

2014 Scooter XC115S - XC115S (1DR5) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1DR5) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
INJECTOR ASSY
Price unavailable
3
Required: 1
. INJECTOR
Price unavailable
O-Ring
4
Yamaha Motors
O-Ring52B-14147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$4.30
$3.65
You save $0.65
More details
O-Ring
5
Yamaha Motors
O-Ring5CA-14147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
PIPE
6
Yamaha Motors
PIPE52S-13938-01-00
Required: 1
. PIPE
Supersedes: 52S-13938-00-00
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
Clip
7
Yamaha Motors
Clip52B-14137-00-00
Required: 1
. CLIP
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
8
Required: 1
PIPE, FUEL 1
Price unavailable
9
Required: 1
PLATE
Price unavailable
10
Required: 1
STAY
Price unavailable
11
Required: 1
O-RING
Price unavailable
Flange Bolt
12
Yamaha Motors
Flange Bolt95817-06045-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-06045-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Hexagon Socket Bolt
13
Yamaha Motors
Hexagon Socket Bolt90110-06172-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
14
Required: 1
THROTTLE BODY ASSY
Price unavailable
15
Required: 1
ADAPTER
Price unavailable
16
Required: 1
HOSE CLAMP ASSY
Price unavailable
17
Required: 1
HOSE, AIR
Price unavailable
18
Required: 2
CLIP
Price unavailable
19
Required: 1
O-RING
Price unavailable
20
Required: 1
GASKET
Price unavailable
Flange Bolt
21
Yamaha Motors
Flange Bolt95817-06040-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-06040-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
22
Required: 1
PLATE
Price unavailable
23
Required: 1
CASE, AIR CLEANER 1
Price unavailable
24
Required: 1
CAP, CLEANER CASE 1
Price unavailable
25
Required: 1
DUCT
Price unavailable
26
Required: 1
ELEMENT ASSY, AIR CLEANER
Price unavailable
27
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
28
Required: 2
SEAL
Price unavailable
29
Required: 1
PIPE, DRAIN
Price unavailable
30
Required: 1
PIPE, DRAIN 2
Price unavailable
Clip
31
Yamaha Motors
Clip90467-12809-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Truss Screw
32
Yamaha Motors
Truss Screw97707-50525-00
Required: 8
SCREW, TAPPING
Supersedes: 97707-50125-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
33
Required: 1
LABEL, CAUTION
Price unavailable
34
Required: 1
HOSE CLAMP ASSY
Price unavailable
Flange Bolt
35
Yamaha Motors
Flange Bolt95812-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
